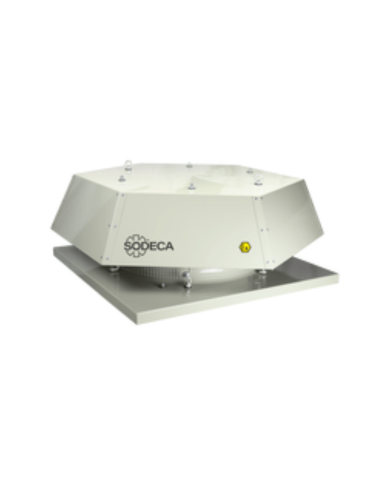

HELICOID HELICOIDE MULTIFONCTIONAL TURRET HTMH / ATEX
- Galvanized steel sheet support base and anticorostive treatment.
- Adjustable throttle propellers of cast aluminum.
- Anti-contact protection grid according to the standard one-en ISO 12499.
- Hat deflector rainworm made of painted galvanized steel sheet, with natural air outlet.
- Standard marking with explosion engine (ex dB): II 2g Ex H iB T4 GB.
- Standard marking with increased safety motor (ex eB): II 2G ex H iB T3 GB.
- Standard marking with dust motor (ex tb): II 2D Ex H IIIC T135 ºC dB.
- CLASS F motors with ball bearings and ATEX anti-ddflagrant certificate, increased safety ex eb or virole protection for ex tb.
- single phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (> 4 kW).
- Operating temperature: -20 ºC +40 ºC.
- Adjustable throttle propellers of cast aluminum.
- Anti-contact protection grid according to the standard one-en ISO 12499.
- Hat deflector rainworm made of painted galvanized steel sheet, with natural air outlet.
- Standard marking with explosion engine (ex dB): II 2g Ex H iB T4 GB.
- Standard marking with increased safety motor (ex eB): II 2G ex H iB T3 GB.
- Standard marking with dust motor (ex tb): II 2D Ex H IIIC T135 ºC dB.
- CLASS F motors with ball bearings and ATEX anti-ddflagrant certificate, increased safety ex eb or virole protection for ex tb.
- single phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (> 4 kW).
- Operating temperature: -20 ºC +40 ºC.
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
These multifunctional turrets are designed to handle large air flows, making them ideal for applications requiring intensive ventilation. They are ATEX 2G or 2D certified, ensuring their compliance for use in potentially explosive environments, whether in the presence of gas (2G) or dust (2D). These turrets are equipped with specialized engines, available in several variants to meet specific security requirements
References Manufacturer: 1034323,1034310,1034336,1034367,1034380,1034393,1034406,1034419,1034450,1034463, 10344476,1034502,1034489,1034527,1034540,1034553,1034566,1034579,1034636,1034649,1034649, 1034623,1034674,1034687,1034208,1034182,1034195,1034239,1034252,1034265,1140593, 1140594,1140595,1140596,1140597,1140,11,11,11,11,11,11,11,11,11,114033, 1034321,1034308,1034334,1034365,1034378,1034391,1034404,1034417,1034448,1034461, 10344474,1034500,1034487,1034525,1034538,1034551,1034564,1034577,1034634,1034647,1034647, 1034621,1034672,1034685,1034206,1034180,1034193,1034237,1034250,1034263,1140607, 1140608,1140609,1140610,1140611,1140612,1140613,1140614,1140615,1140616,1140617
| Ambiant temperature | -20 ° C to 40 ° C |
|---|---|
| Temperature class | T3 |
| Warranty | 2¨ |
| Feed | 230V AC |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIB |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.ce |
| Frequency (Hz) | 50hz |
| Material | Steel sheet with anti-corrosion epoxy coating |
| T4 | 1 |
| IIC | 1 |
| -20 ° C to 90 ° C | 1 |
