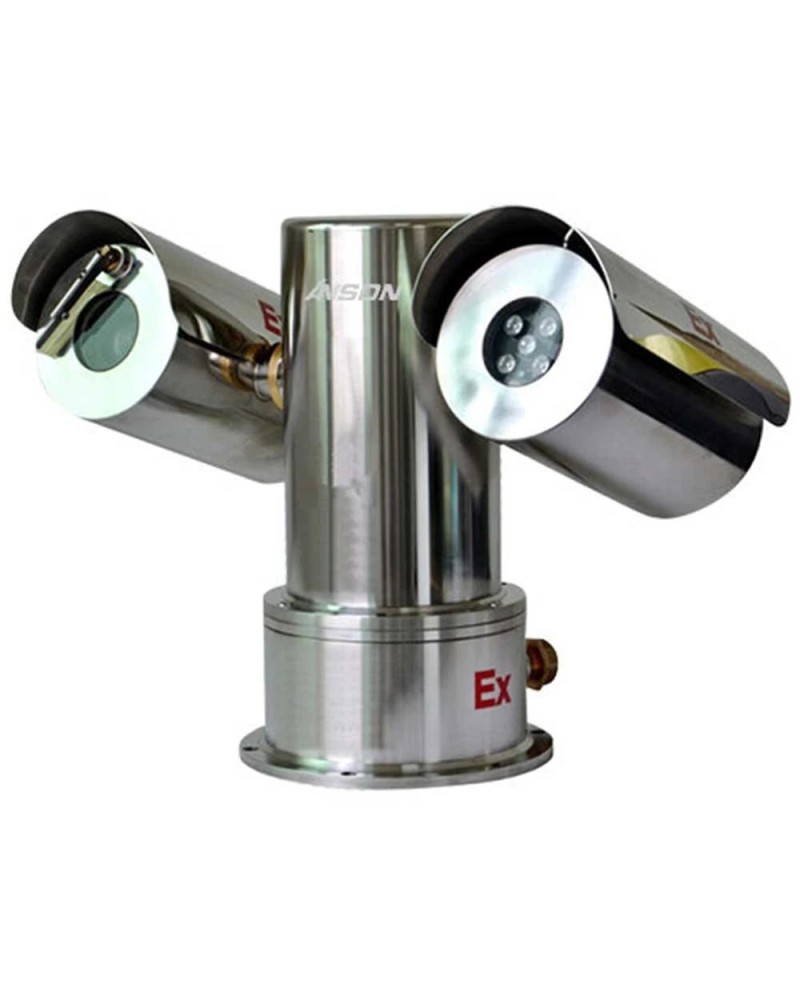

PTZ ATEX HL-E9002 Camera
- Double Antidofflower Certification, Antidflower Brand: Ex D ⅱc T6GB / Ex TD A21IP68T80 ℃
- Resolution 1920 * 1080p
-
- supports the video compression algorithms H264 and H265;
- Visible light uses a 2 million pixel 1 / 2.8 "high-performance CMOS image sensor, zoom 26x Intelligent wiper function, windshield wiper uses automotive wiper part, weather resistance is good, the replacement is practical;
360 ° continuous rotation in the horizontal direction, vertical rotation at 90 ° ~ 90 °, no blind monitoring zone;
- IP68, explosion, anti-corrosion, dust and waterproof
- Operating temperature: -30 ° C ~ + 60 ° C
- Infrared distance of 100 m
- 304 stainless steel / 316L stainless steel
- Resolution 1920 * 1080p
-
- supports the video compression algorithms H264 and H265;
- Visible light uses a 2 million pixel 1 / 2.8 "high-performance CMOS image sensor, zoom 26x Intelligent wiper function, windshield wiper uses automotive wiper part, weather resistance is good, the replacement is practical;
360 ° continuous rotation in the horizontal direction, vertical rotation at 90 ° ~ 90 °, no blind monitoring zone;
- IP68, explosion, anti-corrosion, dust and waterproof
- Operating temperature: -30 ° C ~ + 60 ° C
- Infrared distance of 100 m
- 304 stainless steel / 316L stainless steel
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Flashes to flammable Class II A, IIb, IIC, the inflammation temperature group is zone 1 and area 2 of the T1-T6 group, flammable explosive gases, dust, oil refining, refining, the gas station, the gas station, the oil well, drilling, tanker truck, pipeline valve station, etc. The mixture of gas, steam or foggy combustible substance in an explosive gas environment atmosphere will spread throughout the unburned mixture after ignition in the mixture.
References Manufacturer: HL-E9002-W-1080P, HL-E9002-W-4.0MP
| Ambiant temperature | -30 ° C to +60 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip68 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | THIS |
| Frequency (Hz) | 50hz |
| Material | 304 stainless steel |
| Body colors | Gray metallic |
| LED indicator | 1¨ |
| 316L Stainless Steel | 1 |
| -40 ° to + 60 ° C | 1 |
