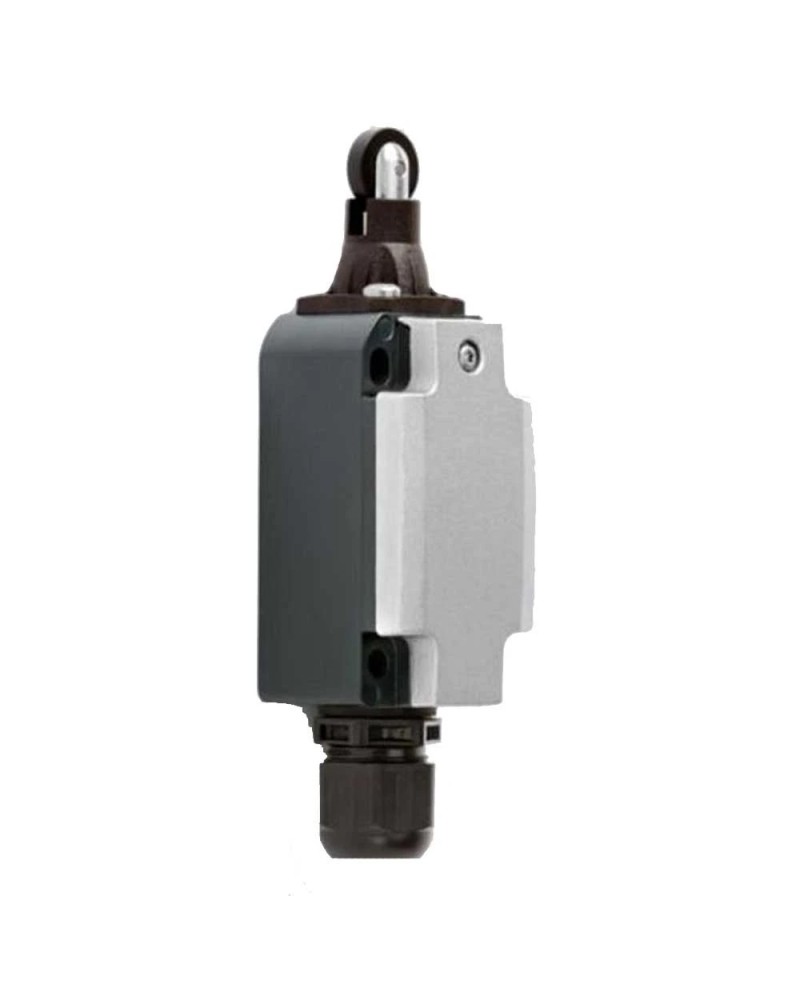

ATEX SERIAL 8074/2 POSITION SWITCH
- Large operating temperature range
- Large internal connection chamber
- High quality metal tank housing with external PE connection
- Degree of protection IP66 / 67
- 5 versions of different contacts
- 10 versions of different actuators
- Large internal connection chamber
- High quality metal tank housing with external PE connection
- Degree of protection IP66 / 67
- 5 versions of different contacts
- 10 versions of different actuators
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Position switches position, control and monitor moving parts of machinery and systems. Because they correspond to the product standards EN 50 041 and IEC 60947-5-1, they can also be used as position switches with security function. The 8074/2 series position switches are approved for use in Ex 1, 2, 21 and 22 zones. In combination with a safety door controller and a suitable circuit, the position switches reach the Pl "E" level according to the standard EN ISO 13849-1 and SIL 3 according to EN 62061. They are marked with a sign for a forced contact. Versions offering different sofa and sudden-bruising contact forms as well as a wide variety of actuators are available.
References Manufacturer: 132311,132312,132313
| Ambiant temperature | -40 ° to + 70 ° |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | max. 500 V AC. 250V DC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | Stainless Steel 1.4401 Gartaled |
| Certificat_atex-en_us | BVS 05 ATEX E 007 |
| Certificat_iecex-en_us | IECEX BVS 16.0085 |
| Body colors | Black |
| Cable entry (s) | 1xm20 |
| Ip66.ip67 | 1 |
| -40 ° C to + 70 ° C | 1 |
