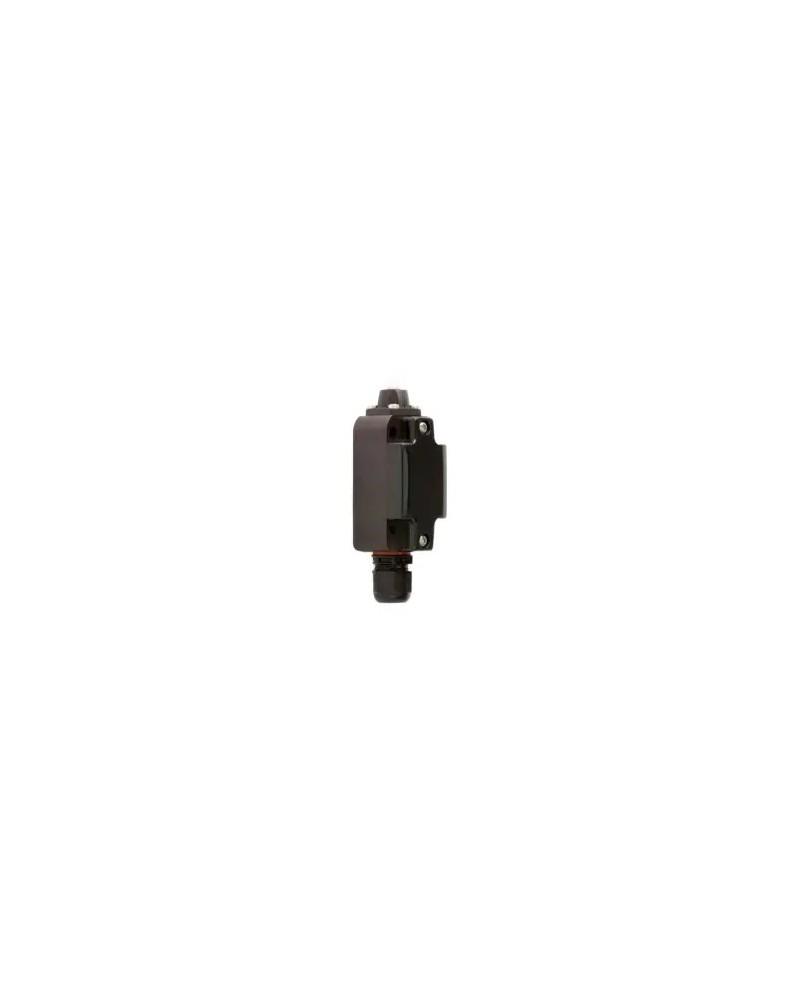

ATEX SERIAL 8070 POSITION SWITCH
- IP66 & 67
- Large operating temperature range
- Large internal connection chamber
- Ex e plastic case
- 5 versions of different contacts
- Different versions of actuators, which can be offset of 4 x 90 °
- also usable as simple electrical equipment
- Large operating temperature range
- Large internal connection chamber
- Ex e plastic case
- 5 versions of different contacts
- Different versions of actuators, which can be offset of 4 x 90 °
- also usable as simple electrical equipment
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The position switches position, control and monitor moving parts of machines and systems. Because they correspond to the product standards EN 50 041 and IEC 60947-5-1, they can also be used as position switches with security function. The 8070/2 series position switches are approved for use in zones in Ex 1, 2, 21 and 22. In combination with a safety door controller and a suitable circuit, the position switches reach the Pl "E" level according to the standard. ISO 13849-1 and SIL 3 according to EN 62061. They are marked with a sign for a forced contact. Versions offering different sofa and sudden-bruising contact forms as well as a wide variety of actuators are available.
References Manufacturer: 258219,258220,258221,258222,258226,258227,2582 28,258229,258230,258232,258233,258234,258235.2 58236,258237,258239,258240,258241,258243,25824 4,275368,275070,275365,275362,258608,258607,258 609,275369,275370,258602,258605,258603,258604, 275063,275068,275363,275064,275069,275364,2753 46,275065,268111,275066,275361,275366,268433,2 68432,268434,275067,275367,268112,268113,268114
| Ambiant temperature | -60°C to +55°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | max. 500 V AC. 250V DC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Material | Thermoplastic |
| Body colors | Black |
| Cable entry (s) | 1xm20 |
| Ip66 | 1 |
| Ex e (increased security) | 1 |
| -50 ° C to + 55 ° C | 1 |
