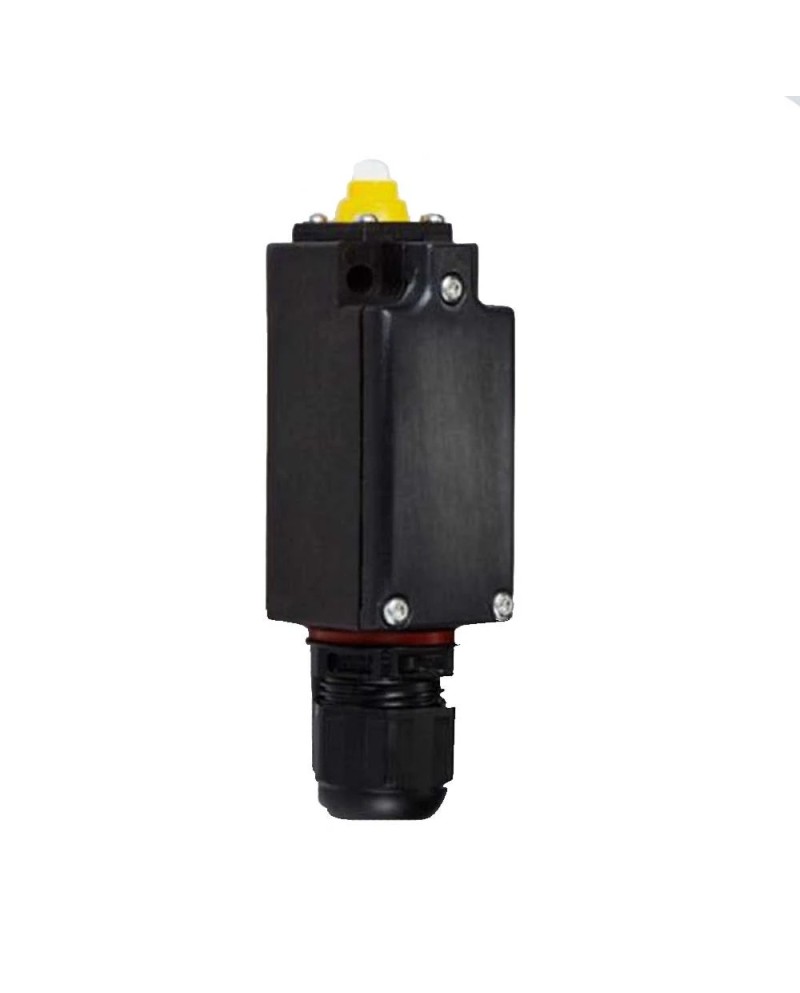

ATEX SERIAL 8060/2 POSITION SWITCH
- Large operating temperature range
- Ex e plastic case
- Degree of protection IP66 / 67
- 5 versions of different contacts
- Different versions of actuators, which can be offset of 4 x 90 °
- also usable as simple electrical equipment
- Ex e plastic case
- Degree of protection IP66 / 67
- 5 versions of different contacts
- Different versions of actuators, which can be offset of 4 x 90 °
- also usable as simple electrical equipment
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Position switches position, control and monitor moving parts of machinery and systems. Because they correspond to the product standards in 50 047 and IEC 60947-5-1, they can also be used as position switches with security function. The 8060/2 series position switches are approved for use in Ex 1, 2, 21 and 22 zones. In combination with a safety door controller and an appropriate circuit, the position switches reach the PL "E" level according to the standard. ISO 13849-1 and SIL 3 according to EN 62061. They are marked with a sign for a forced contact. Versions offering different sofa and sudden-bruising contact forms as well as a wide variety of actuators are available.
References Manufacturer: 254793,254794,254795,254796,254797,254798, 254799,254800,254881,254882,254883,254884.2 54885,254886,254887,254888,254889,254890,25 4891,254892,254893,254894,254895,254896,254 897,254898,254899,254900,254901,254902,257 239,257053,257052,257057,257059,257058,2570 54,257060,257055,257056,267973,267974,26843 1,268420,268419,268417,268416,268418,268415
| Ambiant temperature | -60°C to +55°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 12V DC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | Thermoplastic |
| Certificat_atex-en_us | BVS 16 ATEX E 100 |
| Certificat_iecex-en_us | IECEX BVS 16.0066 |
| Body colors | Black |
| Cable entry (s) | 1xm20 |
| Polyamide | 1 |
| Black (RAL9004) | 1 |
| Ip65.ip66 | 1 |
| Ex d (explosion) | 1 |
| max. 500 V AC. 250V DC | 1 |
| T5 | 1 |
