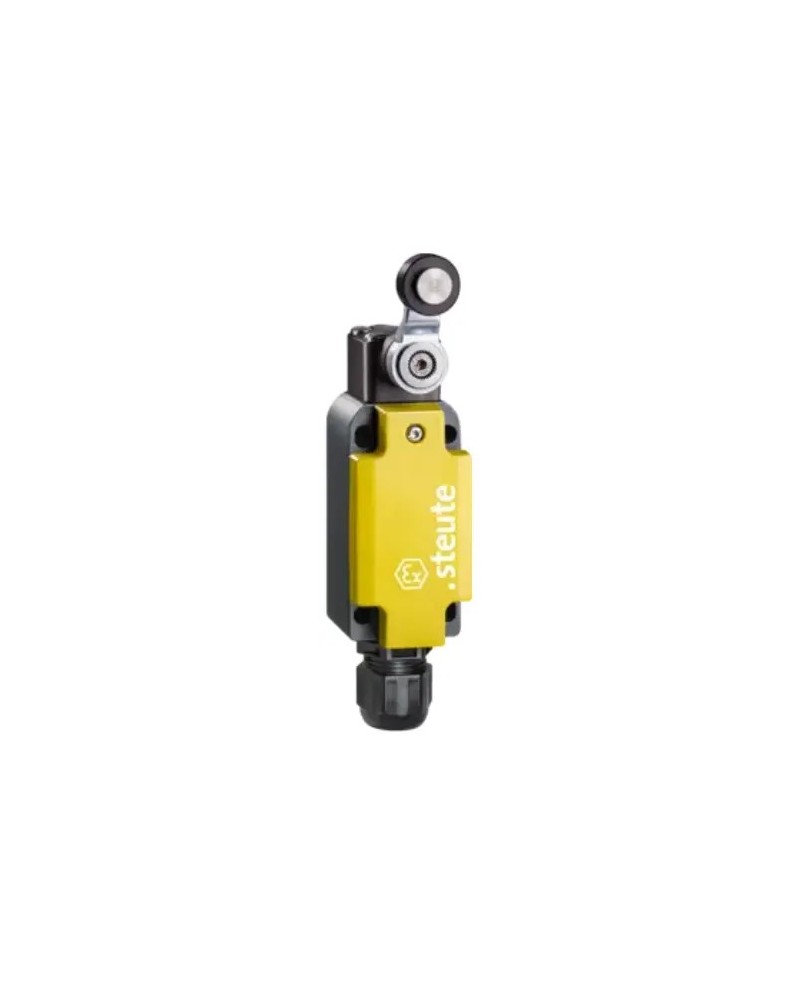

ATEX SERIES EX 98 POSITION SWITCH
- Ex 1 and 21 zones
- Cold resistant up to -40 ° C
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Actuator: rotary lever d
- Training type according to EN 50041
- max actuation speed. 2.5 m / s with 30 ° vertical attack angle
- Abrasion resistant plastic roll
- Adjustable actuator by step of 10 °
- Removable 4 x 90 ° actuator
- Attention: Please indicate international approvals necessary!
- Cold resistant up to -40 ° C
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Actuator: rotary lever d
- Training type according to EN 50041
- max actuation speed. 2.5 m / s with 30 ° vertical attack angle
- Abrasion resistant plastic roll
- Adjustable actuator by step of 10 °
- Removable 4 x 90 ° actuator
- Attention: Please indicate international approvals necessary!
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The EX EM 98 D-11 -40 ° C position switch is designed for demanding industrial environments, particularly those exposed to very low temperatures (up to -40 ° C). It is certified for use in explosive atmospheres thanks to its EX certification, ensuring maximum safety in risk areas.
References Manufacturer: 1409961,1442593,1442030,1442493,1409658,14011,1442200,1443731,140 7644,1400737,1400733,1400735,1400761,1400757,1400759,1400745,1400741, 1400743,1400753,1400749,1400751,1400721,1400717,1400719,1400703,138 7893,1400705,1400711,1400709,1400713,1400725,1300729,1216909,1471101
| Ambiant temperature | -40°C to +70°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Material | Aluminum cast iron alloy |
