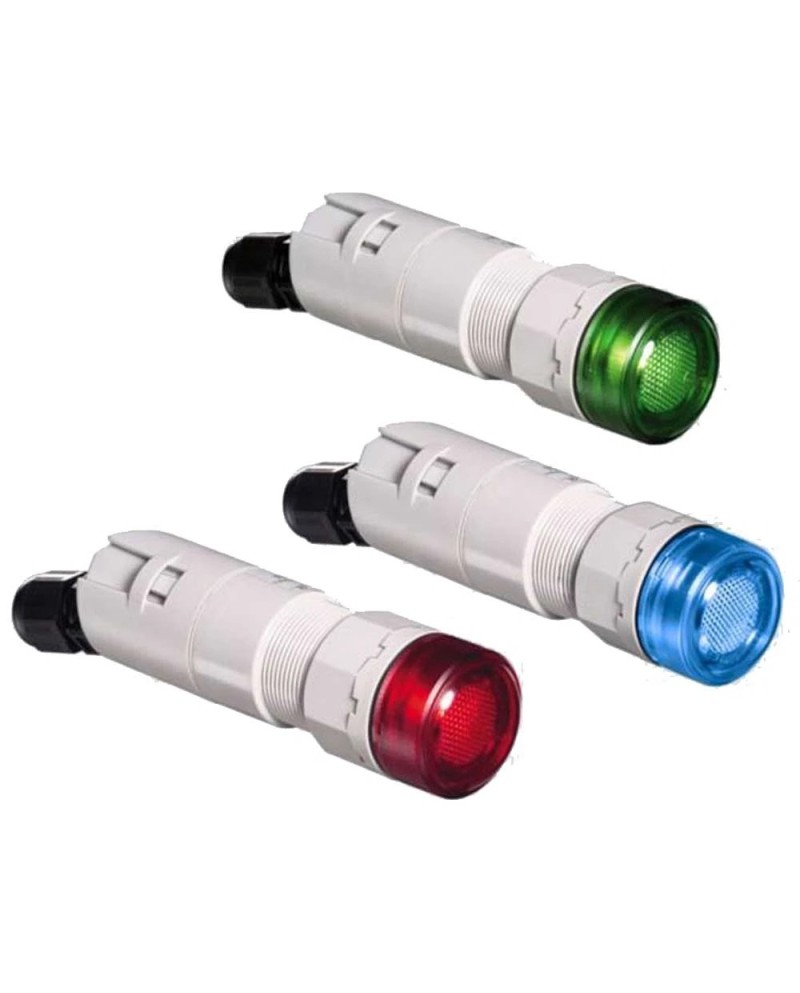

LED ATEX light indicator for recessed mounting 8013 series
- IP65 & 66
- LED light LED for recessed mounting
- Minimum ambient temperature: -30 ° C
- Maximum ambient temperature: +60 ° C
- Gas protection mode: DB EB MB
- Certificates: ATEX (PTB), China (CQST), IECEX (PTB)
- bright color: white, blue, yellow, red, green
- LED light LED for recessed mounting
- Minimum ambient temperature: -30 ° C
- Maximum ambient temperature: +60 ° C
- Gas protection mode: DB EB MB
- Certificates: ATEX (PTB), China (CQST), IECEX (PTB)
- bright color: white, blue, yellow, red, green
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Advantageous LED technology: Extremely long life, high luminance, minimum heat release Suitable for installation in box walls, device covers, tables or control cabinets version with spring terminal and connection chamber or version with cable with cable Pre-finished connection and connection chamber available
References Manufacturer: 245188,269658,269660,269751,269752,269753,269754,269755,214311
| Ambiant temperature | -30 ° C to +60 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 12V DC |
| Waterproofing protection (IP) | Ip65.ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 02 ATEX 2130 U |
| Certificat_iecex-en_us | ECEX PTB 07.0012 U |
| Body colors | White |
| Ex d (explosion) | 1 |
| Ip20 | 1 |
