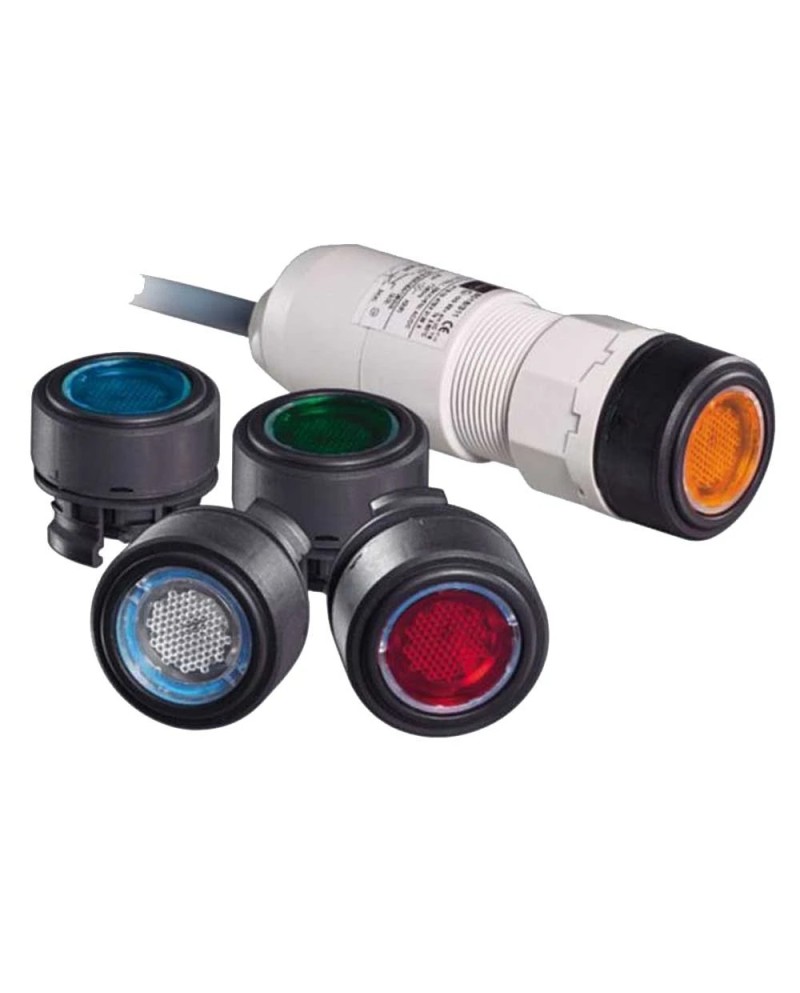

ATEX LED LED Push Button for Recessed Mounting 8018 Serial
- Minimum ambient temperature: -30 ° C
- Maximum ambient temperature: +60 ° C
- Gas protection mode: db mb
- Certificates: ATEX (PTB), China (CQST), IECEX (PTB)
- bright color: white, blue, yellow, red, green
- Cable length: 6 m
- Maximum ambient temperature: +60 ° C
- Gas protection mode: db mb
- Certificates: ATEX (PTB), China (CQST), IECEX (PTB)
- bright color: white, blue, yellow, red, green
- Cable length: 6 m
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Suitable for an installation in box walls, device covers, tables or control cabinets Fastening a hole ∅ 30 mm Advantageous LED technology: extremely long life, high luminance, minimum heat release protection against reliable explosions Light and contact elements with antide-slip envelope
References Manufacturer: 269788,269789,269790,269791,269792,269793
| Ambiant temperature | -30 ° C to +60 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip65 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 02 ATEX 2129 x |
| Certificat_iecex-en_us | IECEX PTB 07.0011X |
| Body colors | White |
| Black | 1 |
