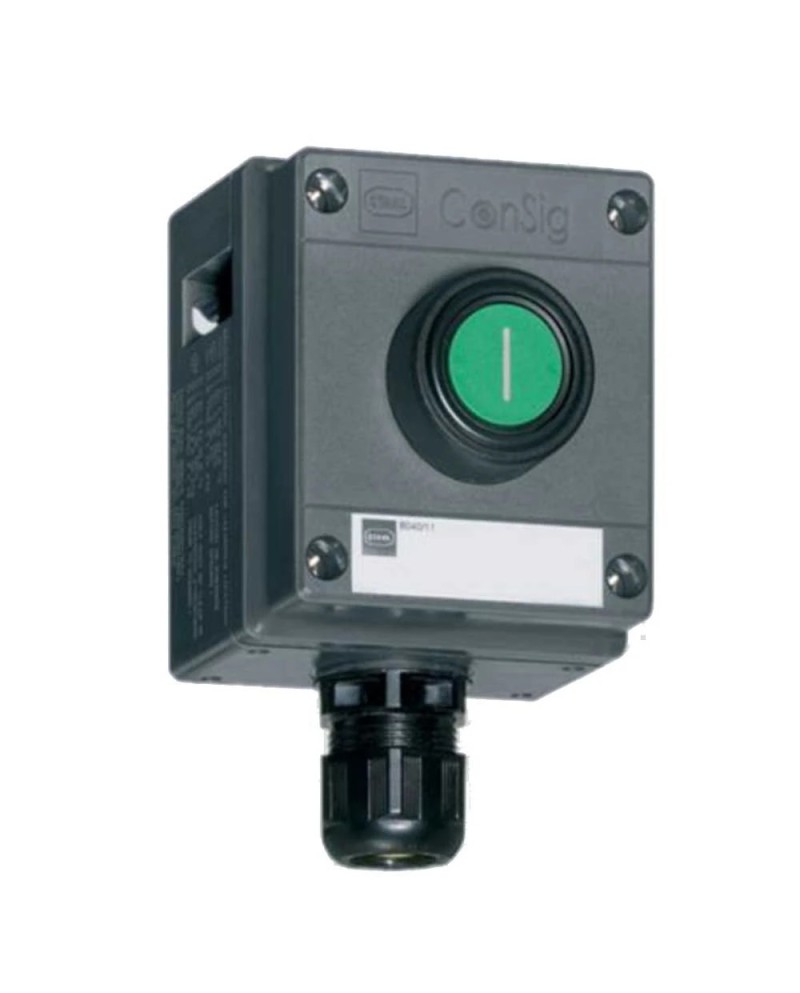

Control push button / ATEX switch for built-in 8003 / 1.1 series

Name: Control push button / ATEX switch for built-in 8003 / 1.1 series
Brand: R. Stahl
SKU: STL0010

- IP65
- Control stations for embedded mounting ex e
- Minimum ambient temperature: -20 ° C
- Maximum ambient temperature: +60 ° C

- Gas protection mode: DB EB
- Flexible pushbutton configuration, pushbutton punch buttons, stop buttons, key punch buttons, key pushbuttons, key switches
- Easy assembly thanks to the attachment into a hole
- "Fixed", "reminder" and "non-relentable key" functions can be coded
- Spring terminals with connection chamber

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The 8003 series recessed control switches and buttons for multi-switching functions up to 6 A in fixed and reminder positions, which may also be recodeled later. These are fully anti-slip and certified materials with an ex e e connection chamber. The patented fastening mechanism allows easy and fast mounting in tables with 30.5 mm standard bores. Suitable control heads are available for a wide variety of applications.

References Manufacturer: 269763,269767,269769,269811,269812,269813,269821,269834.2 69835,269836,269838,269839,269819,269820,269826,269827,269 828,269830,269841,269842,269849,269768,127158,271807,2179 11,213516,217964,271808,217965,271809,270892,213542,213556

Ambiant temperature	-20°C to +60°C
Temperature class	T6
Warranty	2¨
Waterproofing protection (IP)	Ip65.ip66
Application / usage	ATEX zone
ATEX zone	Zone 1/2
Gas class	IIC
ATEX protection mode	Ex e (increased security)
Certificates	Atex.iecex
Frequency (Hz)	60hz
Material	Polyamide
Certificat_atex-en_us	PTB 02 ATEX 1057 x
Certificat_iecex-en_us	IECEX PTB 06.0065X
Body colors	White
Mounting type	Built
2 years	1
Ip65	1
Ex d (explosion)	1
