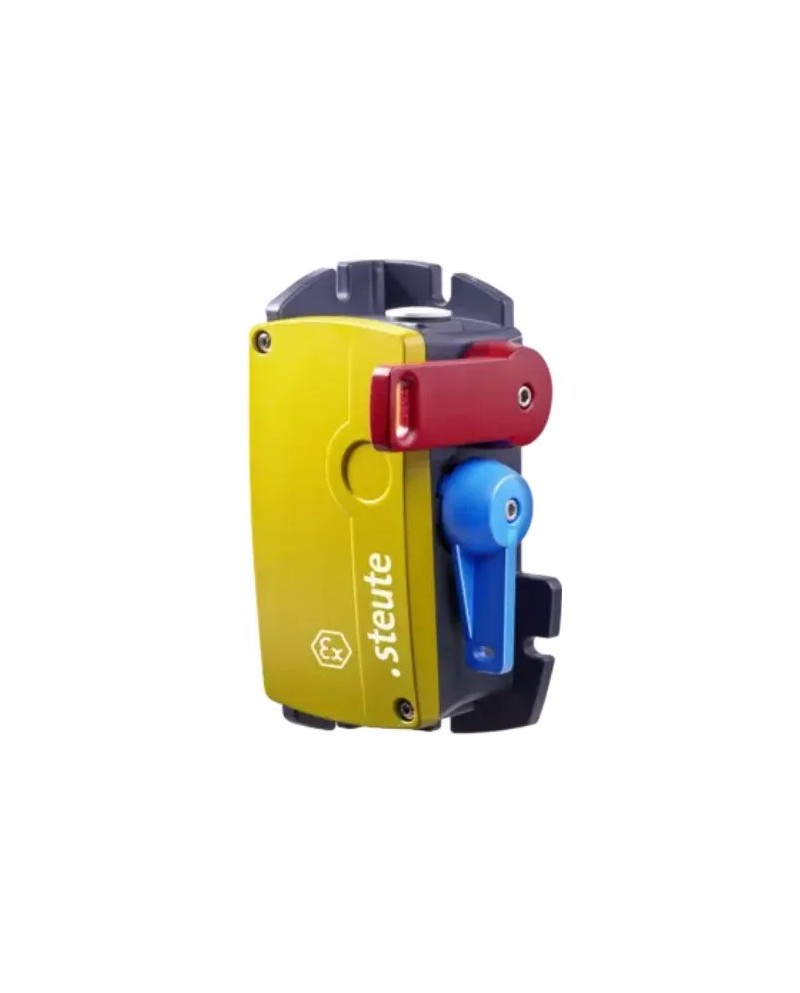

ATEX Emergency Emergency Stop Ex ZS Series 92 S
- Ex 1 and 21 zones
- Corrosion-resistant aluminum case
- Stainless steel screws
- Cable length up to 2 x 100 m
- Rearmament by lever
- F = Reminder lever on the front panel
- Assembly sides rear and lower possible
- Traction detection and cable breaking
- Corrosion-resistant aluminum case
- Stainless steel screws
- Cable length up to 2 x 100 m
- Rearmament by lever
- F = Reminder lever on the front panel
- Assembly sides rear and lower possible
- Traction detection and cable breaking
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The ex zs 92 S 22 VD F is a cable emergency stop device designed for use in risk-based industrial environments, including ex (potentially explosive atmospheres). This model is used to ensure the safety of operators and equipment by allowing a fast and reliable stop of machines via the activation of a cable. It is certified for use in explosive environments.
References Manufacturer: 1326899,1462764,1045515,1045516,1045517,104 5518,1045519,1045520,1045521,1045522,1045523
| Ambiant temperature | -10°C à +55°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Protection étanchéité (IP) | IP65 |
| Application/Usage | Zone ATEX |
| Zone ATEX | Zone 1/21 |
| Classe de gaz | IIC |
| Mode de protection ATEX | Ex d (antidéflagrant) |
| Certificats | ATEX.IECEx |
| Matière | Alliage de fonte d'aluminium |
| Couleurs corps | Gris anthracite (RAL 7016) |
