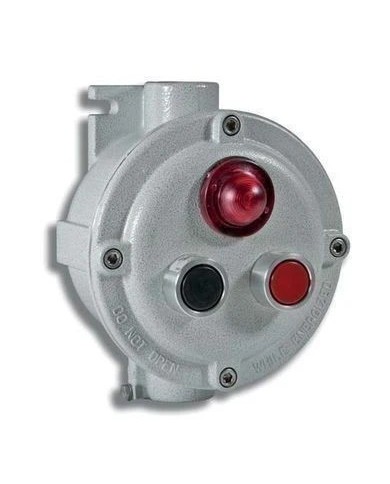

EFSCO control switch
- IIC Group
- Zones 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
- Zones 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The EFSCO series switches, deviators and switches are rotary type in package 25, 50 and 63 A front-controlled.
References Manufacturer: EFSCO-22, EFSCO-23, EFSCO-24, EFSCO-242, EFSCO-244, EFSCO-26, EFSCO-266, EFSCO-32, EFSCO-33, EFSCO-34, EFSCO-342, EFSCO-344, EFSCO-36, EFSCO-366, EFSCO-42, EFSCO-43, EFSCO-44, EFSCO-442, EFSCO-444, EFSCO-46, EFSCO-466, EFSCO-62, EFSCO-63, EFSCO-64, EFSCO-642, EFSCO-66
| Ambiant temperature | -20°C to +55°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | max. 500 V AC. 250V DC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Material | Aluminum |
| Certificat_atex-en_us | CESI 01 ATEX 092 X |
| Certificat_iecex-en_us | These 17,0001x |
| Body colors | Ral7035 |
| Cable entry (s) | 1xm20 |
