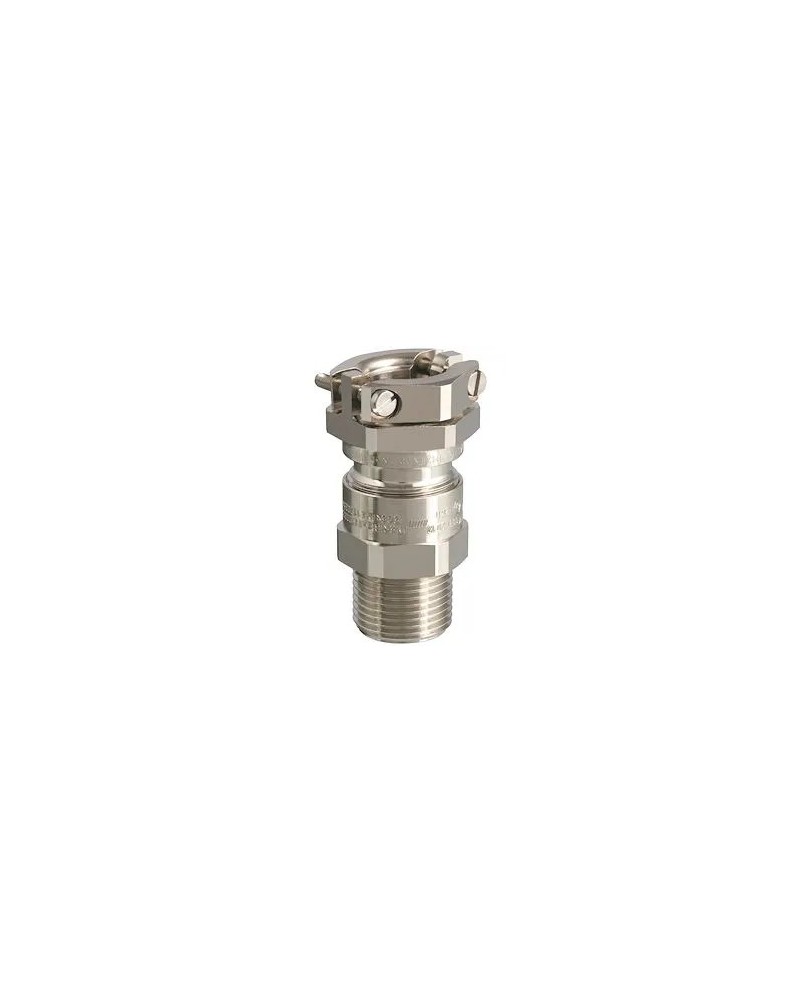

Cable gland with ADE 1F2 A ISO16 N ° 04 N -A2S series

Cable gland ADE 1F2 A

Name: Cable gland ADE 1F2 A
Brand: CAPRI
SKU: EAT0004

- ATEX and IECEX certifications
- Many other international certifications
- Usable safely in zones 1, 2, 21 and 22
- High protection index IP66 / IP68
- Simple and fast installation
- Wide allowable ambient temperature range
- Proven reliability in severe industrial environments
- 100% mechanical mooring thanks to integrated mooring flanges

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The ADE 1F2 A cable glands range allows the connection of a non-armed cable. ADE 1F2 A is available in nickel-plated brass or 316L stainless steel, with an ISO or NPT thread. This cable gland can be used for expanded antidoflage applications (ex d) or increased safety (ex e), in dust zones (ex tb) and also in mines (group I M2). Explusing sealing is ensured by a silicone ring, which offers a wide operating temperature range of -60 ° C to +140 ° C. The hat integrates two mooring flanges for a perfect mechanical holding of the cable.

References Manufacturer: CAP036504V1, CAP036509V1, CAP036599V1, CAP036604V1, CAP036609V1, CAP036664V1, CAP03669V1, CAP036679V1, CAP036694V1, CAP036699V1, CAP036704V1, CAP036709V1, CAP036774V1, CAP036794V1, CAP036799V1, CAP036804V1, CAP036809V1, CAP036904V1, CAP036909V1, CAP038609V1, CAP038664V1, CAP038674V1, CAP038679V1, cap038694v1, cap038699v1, cap038709v1, cap038774v1, cap038779v1, cap038794v1, CAP038799V1, CAP038804V1, CAP038809V1

Ambiant temperature	-60°C to +140°C
Waterproofing protection (IP)	Ip66.ip68
Application / usage	ATEX zone
ATEX zone	Zone 1/2
Gas class	IIC
ATEX protection mode	Ex e (increased security)
Certificates	Atex.iecex
Material	316L Stainless Steel
Threading size	M16
Threading type	ISO
