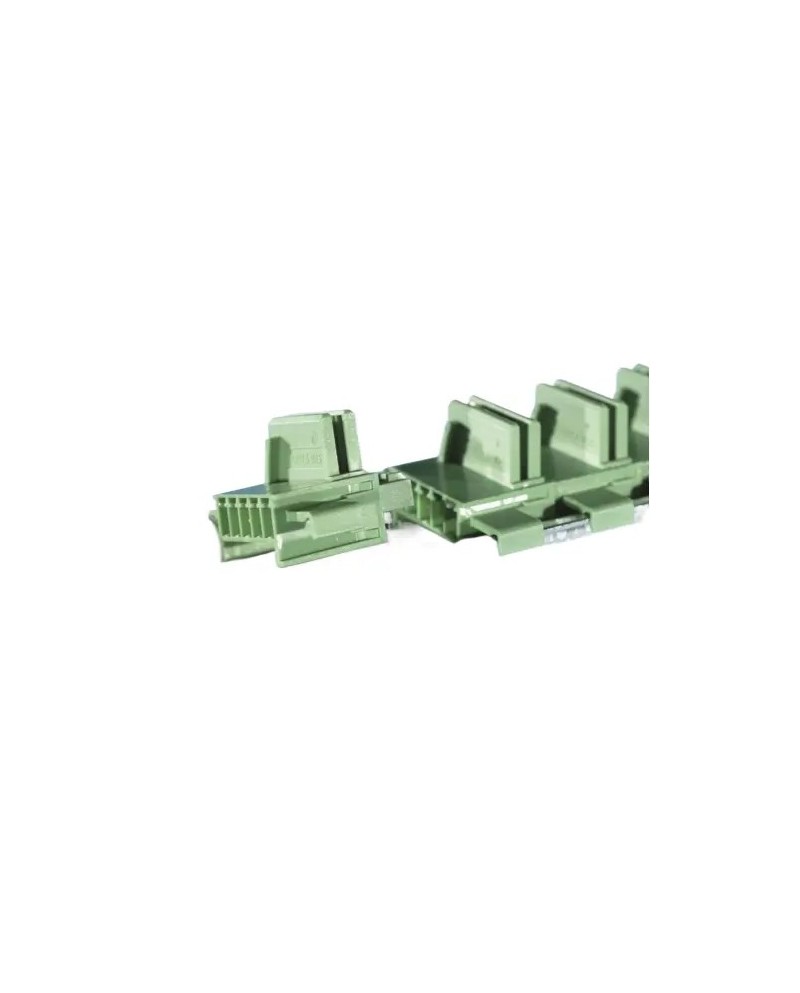

9194 Series PAC Bus
- IP20
- Product Description: Individual Element Bus PAC ISPAC
- FILTERING ZONE: ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), IECEX (BVS), India (Peso), United States (FM)
- Product Description: Individual Element Bus PAC ISPAC
- FILTERING ZONE: ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), IECEX (BVS), India (Peso), United States (FM)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The CAP 9194 / 31-17 bus feeds 30 ... 50 ISPAC devices from the 91xx series. The auxiliary power supply can be injected into the CAP bus segment via the connection terminals 9194 / 50-01. The set of terminals also allows reading the collective error message of ISPAC 91xx modules. The 9193 / 21-11-11 power supply module can also be used for redundant power and reading the collective error message. The CAP bus can be snapped on DIN NS35 / 15 and NS35 / 7.5 rails. The CAP 9194 / 31-17 bus can be combined with the CAP 9294 bus31-12.CoReduced ûs thanks to faster wiring of ISPAC devices without tools and switch on DIN standard rails - possible extension at any time Suitable for industrial environments with vibrations
References Manufacturer: 160731
| Ambiant temperature | -20°C to +70°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 2/22 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | Polyamide |
