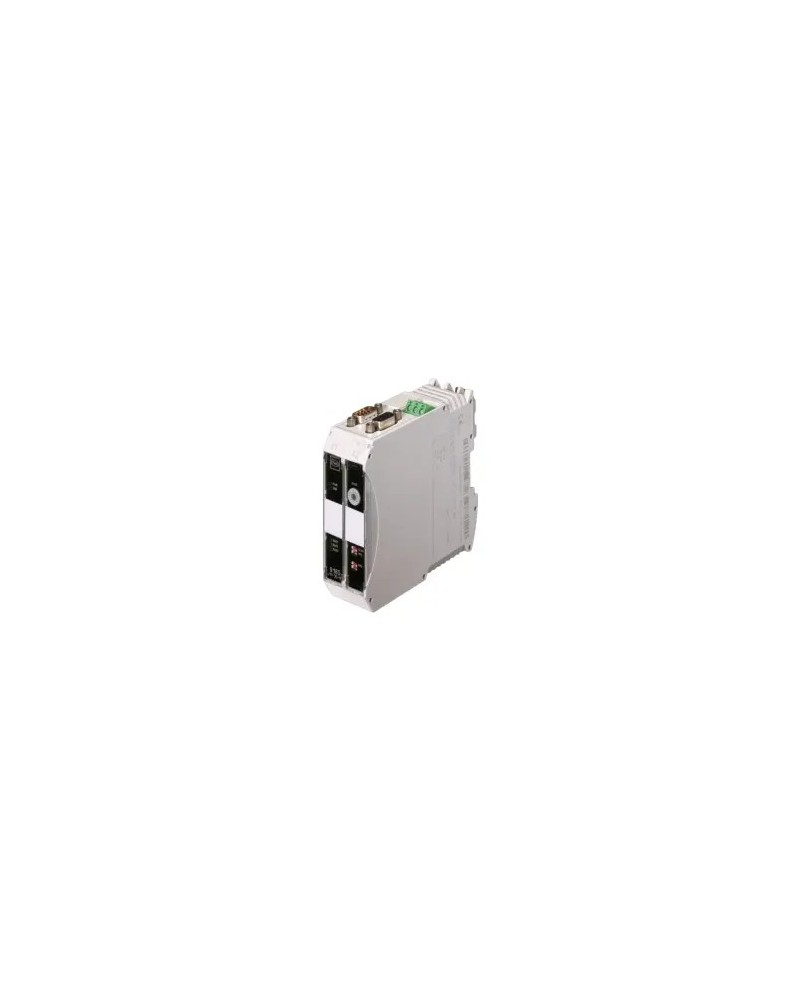

Isolator for fieldbus 9185/11
- IP20
- Product Description: ISPAC field bus insulators
- FILTERING ZONE: ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Canada (FM), China (NEPSI), Korea (KGS), IECEX (BVS), United States (FM)
- Field side interfaces: RS-485 IS (PNO)
- Product Description: ISPAC field bus insulators
- FILTERING ZONE: ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Canada (FM), China (NEPSI), Korea (KGS), IECEX (BVS), United States (FM)
- Field side interfaces: RS-485 IS (PNO)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 9185/11 series bus bus insulators are the interface between the security segments involved and without security involved ProFibus DP fieldbus, Modbus RTU and the like. The devices electrically separate the animated safety bus interfaces (RS-422 / RS-485) from the animated security interfaces (RS-232, RS-422 or RS-485). SimpleFrameter on the front of the function Bit Refresh improves the quality of the signal transmission speeds adjustable between 1.2 kbit / s and 1.5 mbit / s - automatic with PROFIBUS DP Field interface ex i.
References Manufacturer: 227598,227599,227600
| Ambiant temperature | -20°C to +70°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | Atex.iecex |
| Material | Polyamide |
| Body colors | White |
| Ip30 | 1 |
