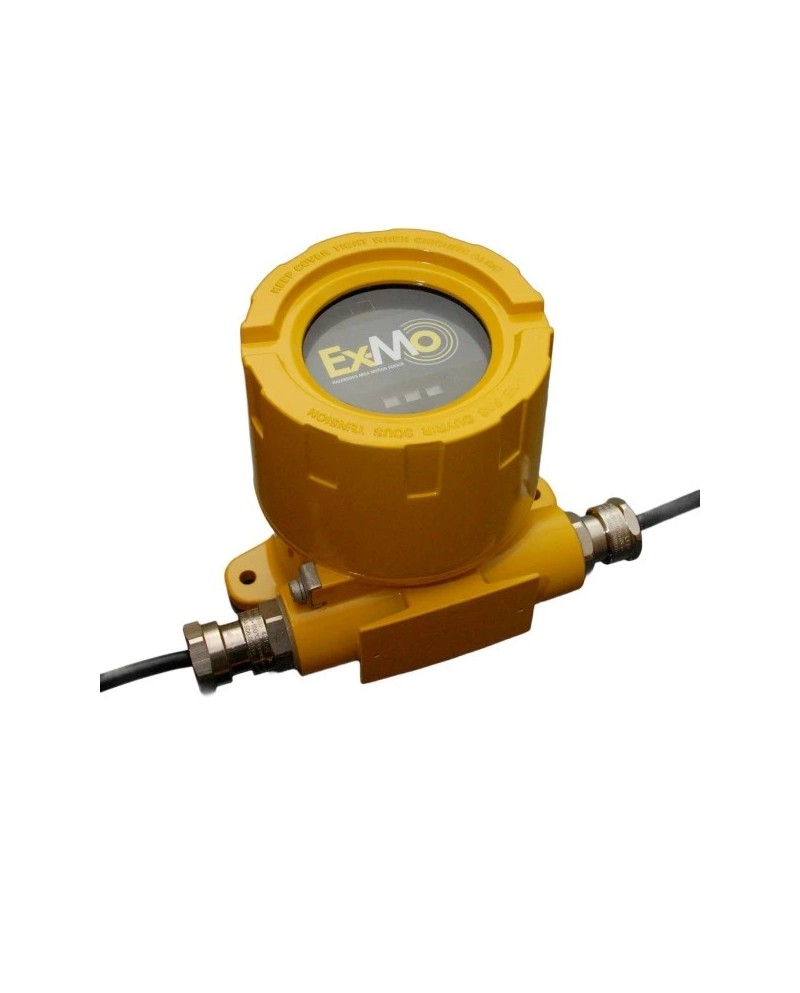

Ex-mo explosion-proof motion sensor
- ATEX / IECEX Certified Zone 1 and Zone 21 for use in explosive gases and dust (certificate: basedfa11atex0005)
- Several sensor / lighting configurations are possible
- Microwave Doppler Technology
- Ambient light level sensor
- Adjustable start-up time
- Sensitivity and adjustable detection range
- ATEX Certified Remote Programmer (Certificate: BaseeFA03ATEX0187)
- Operation at 110/230 VCA or 24 VDC Direct Relay Output 10A
- 12 / 24Vdc control input to replace the detection sensor
- Several sensor / lighting configurations are possible
- Microwave Doppler Technology
- Ambient light level sensor
- Adjustable start-up time
- Sensitivity and adjustable detection range
- ATEX Certified Remote Programmer (Certificate: BaseeFA03ATEX0187)
- Operation at 110/230 VCA or 24 VDC Direct Relay Output 10A
- 12 / 24Vdc control input to replace the detection sensor
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
A high quality and robust "explosion-free" motion sensor designed for use in difficult and dangerous areas. Supplied with 3 M20 inputs and shipped with transport caps (cable glands, stoppipes and adapters are also available).
References Manufacturer: Ex-MOPA230SV12, Ex-MOPA24SV12
| Warranty | 3¨ |
|---|---|
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Certificates | Atex.iecex |
