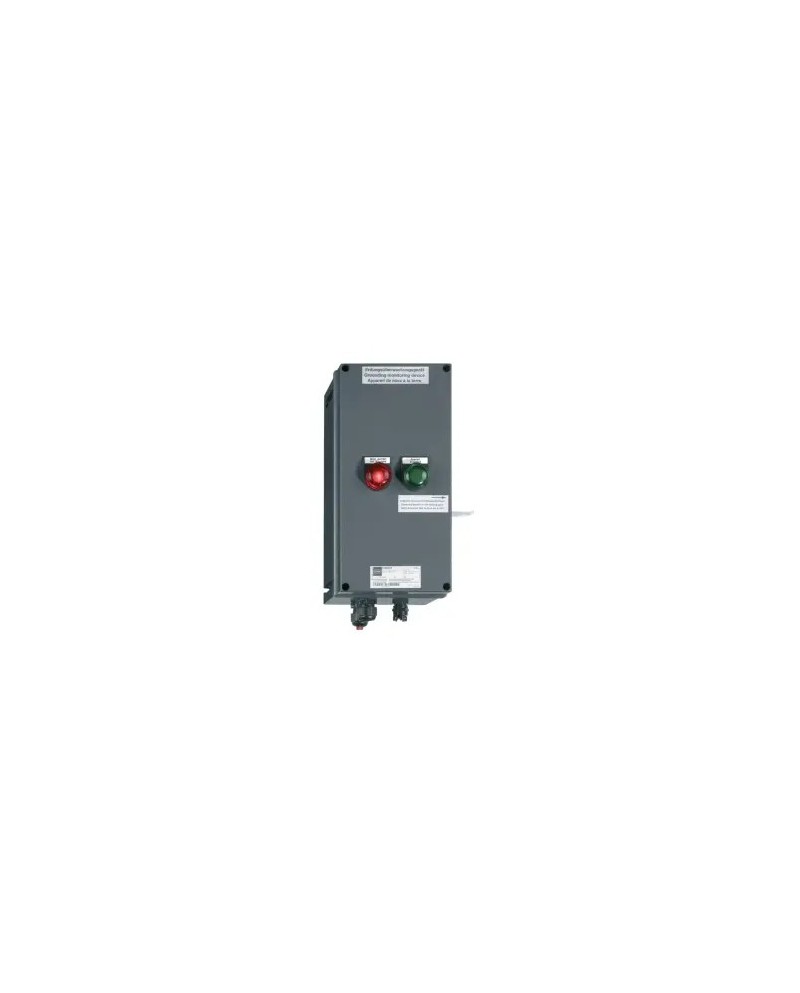

Earthing (Grounding) Monitoring Device – Series 8146
€3,197.20
Tax excluded
- Color temperature: -20 ° C to + 55 ° C
- Continuous monitoring of proper grounding
- Robust design
- Plastic case (IP66)
Last items in stock
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The grounding monitoring apparatus provides electrostatic cracking of tank containers, tank trucks, tank trucks, railway vehicles and GRC during loading flammable liquids and powdery goods. At the same time, the device monitors the state of electrostatic grounding. It is thus guaranteed that the electrostatic charge remains at a safe level and that there is no risk of explosion due to an uncontrolled discharge of this energy
References Manufacturer: 273441
| Ambiant temperature | -20°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.ce |
| Frequency (Hz) | 50 / 60hz |
| Material | Reinforced polyester (GRP) |
| Certificat_atex-en_us | PTB 01 ATEX 1024 |
| Body colors | Black |
