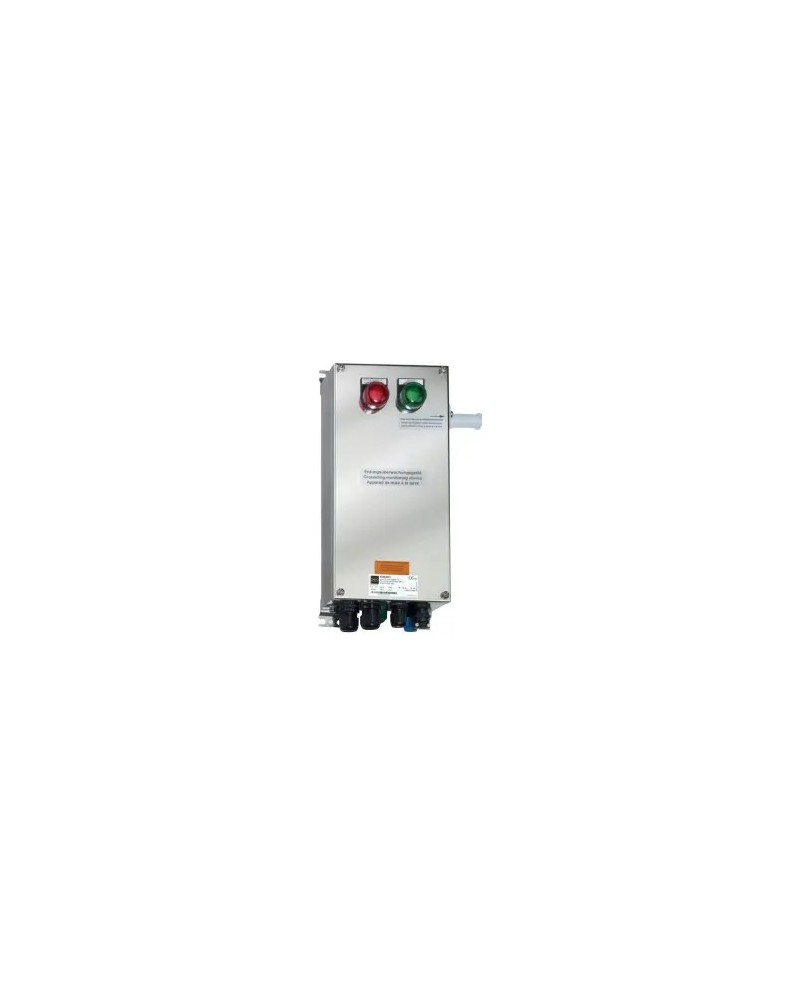

8150 Series Ground Monitoring Apparatus
- Product Description: Ground Monitoring Apparatus
- FILTERING ZONE: ZONE 1 | 2G | Go / Zone 2 | 3G | GC / Zone 21 | 2D | Db / zone 22 | 3D |
- Certificates DC: ATEX (PTB), Brazil (ULB), China (NEPSI), IECEX (PTB), India (Peso), SIL (Exida), Taiwan (ITRI)
- Housing material: Stainless steel 1.4404
- Continuous monitoring of proper grounding
- Robust design
- Stainless steel weather resistant (IP66)
- a potential free two-way contact for process control technology signaling or for external signaling devices
- Isolated attachment point
- Usable up to SIL 2 (IEC 61508)
- FILTERING ZONE: ZONE 1 | 2G | Go / Zone 2 | 3G | GC / Zone 21 | 2D | Db / zone 22 | 3D |
- Certificates DC: ATEX (PTB), Brazil (ULB), China (NEPSI), IECEX (PTB), India (Peso), SIL (Exida), Taiwan (ITRI)
- Housing material: Stainless steel 1.4404
- Continuous monitoring of proper grounding
- Robust design
- Stainless steel weather resistant (IP66)
- a potential free two-way contact for process control technology signaling or for external signaling devices
- Isolated attachment point
- Usable up to SIL 2 (IEC 61508)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The grounding monitoring apparatus provides electrostatic cracking of tank containers, tank trucks, tank trucks, railway vehicles and GRC during loading flammable liquids and powdery goods. At the same time, the device monitors the state of electrostatic grounding. It is thus sure that the electrostatic load remains at a level and there is no risk of explosion due to an uncontrolled discharge of this energy.
References Manufacturer: 256498
| Ambiant temperature | -20°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 253V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | ATEX.IECEx.SIL |
| Material | Stainless Steel 1.4401 Gartaled |
| Certificat_atex-en_us | PTB 09 ATEX 1109 |
| Certificat_iecex-en_us | IECEX PTB 09.0049 |
| Body colors | White |
