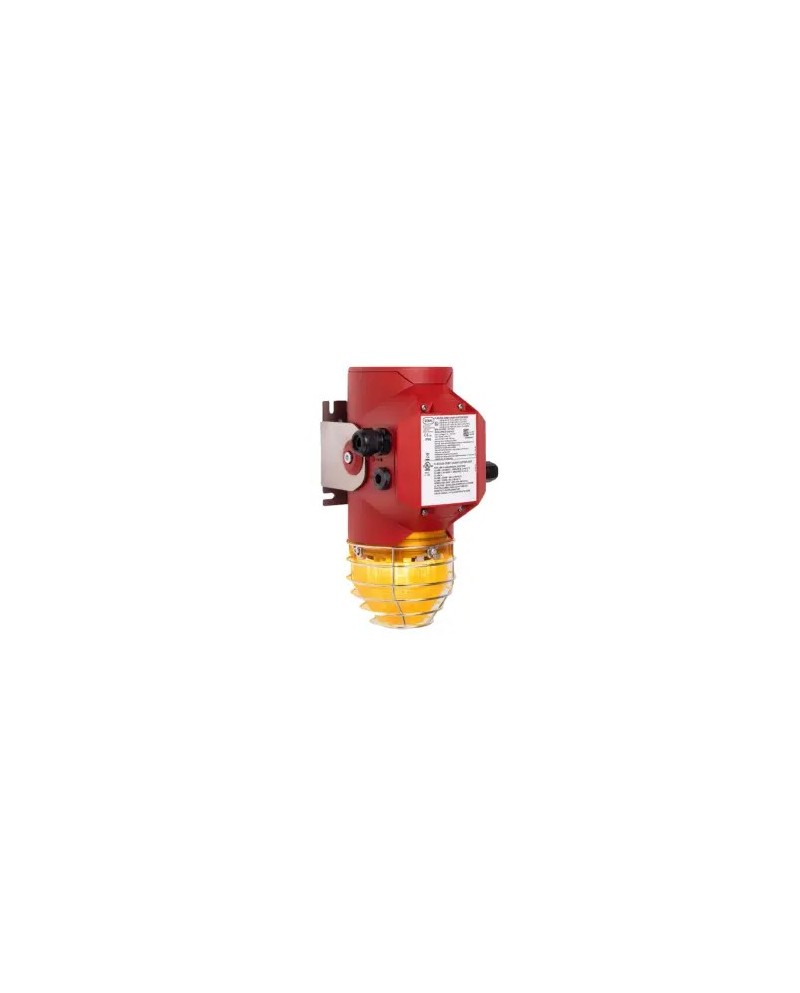

ADEX Optic Alarm FL60 / 3 Series - Yodalex 3
- IP66 & 67
- Certificates: ATEX (BVIS), IECEX (BVIS)
- AC assigned voltage AC: 110 ... 240 V
- Assigned voltage of use DC: 133 ... 272 V
- Lamp: Xenon sparkling tube 5J
- Housing material: aluminum with powder coating
- Case color: red, similar to RAL 3020
- Lentil color: red
- Certificates: ATEX (BVIS), IECEX (BVIS)
- AC assigned voltage AC: 110 ... 240 V
- Assigned voltage of use DC: 133 ... 272 V
- Lamp: Xenon sparkling tube 5J
- Housing material: aluminum with powder coating
- Case color: red, similar to RAL 3020
- Lentil color: red
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The FL60 / 3 product range provides light signals for indicating by means of an alarm, warning or notice, malfunction / start of a device or any other security technical problem occurring in ex. LED models (LEDs Preconfigured offer a wide range of internationally standard signals, with 4 channels to a flexible use, respectively. Signaling devices meet the specifications of EN54 and DNV standards for the most demanding environments.
References Manufacturer: 312376,312356,319349,319350,319401,322523,324130,323016,324129,322465, 312357,319406,318829,319407,312372,318586,319408,319409,319410,319421
| Ambiant temperature | -40 ° to + 60 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 100-240V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | EPS 22 ATEX 1 224X |
| Certificat_iecex-en_us | IECEX EPS 22.0046X |
| Body colors | Red |
| Light source | LED |
| LED indicator | 1¨ |
| 12V DC | 1 |
| Ex d (explosion) | 1 |
