Alarm Atex Series 8146/5052: Zone 1,2 -A2S

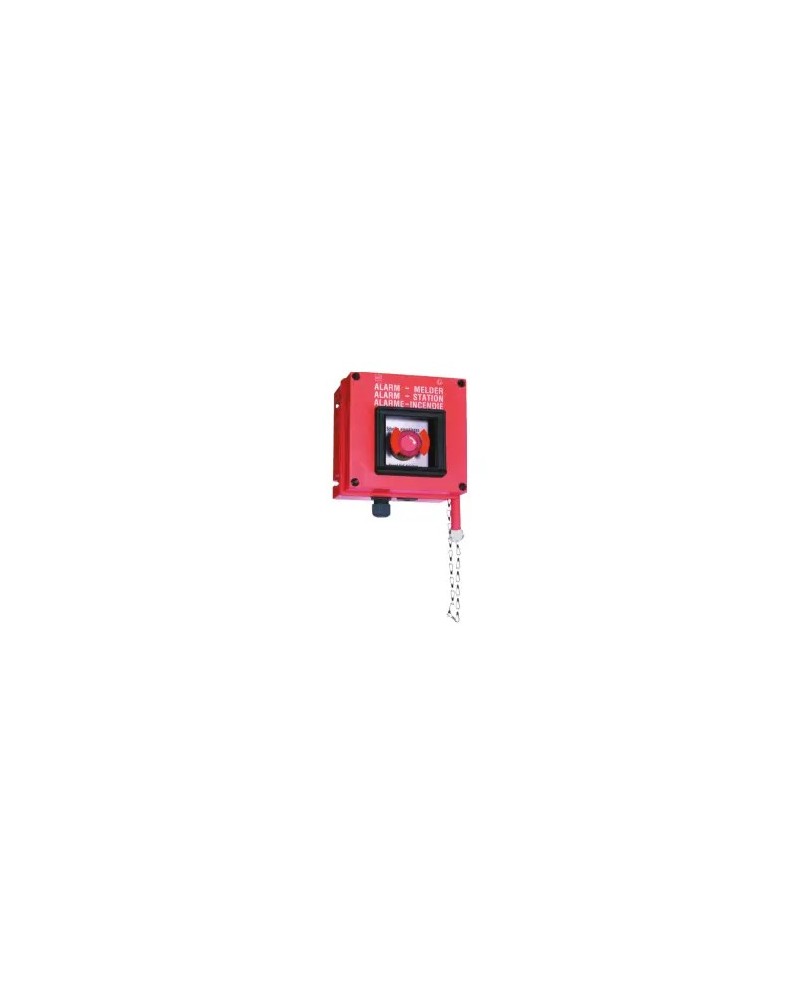

Alarm and fire alarm set ATEX 8146/5052

Name: Alarm and fire alarm set ATEX 8146/5052
Brand: R. Stahl
SKU: STL0203

- IP66
- Maximum ambient temperature: +60 ° C
- Minimum ambient temperature: -40 ° C
- Version: Push button Putton prestraint
- Version 2: ice break
- Certificates: ATEX (PTB)
- Housing material: polyester resin
- Case color: red (RAL 3000)
- Housing Material 2: Reinforced Glass Fiber
- Contacts: 1 NF + 1 NO
- Cabless: 1 x m25x1.5

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

Red Visible Red (RAL 3000) in polyester resin reinforced with 3 versions with manual or automatic alarm triggering and stop via a button or key Short-circuit protection of the case and monitoring of possible wire by subsequent installation A series of 8208 series resistance with R. Stahl 8146/5052 series alarm and fire alarms, you can trigger the alarm manually in the Ex zones. Break the glass using the breeze hammer -VIRE attached to the side, and trigger the alarm using the button. The detectors are available in three different variants for triggering and alarm cut.

References Manufacturer: 136137,136128,136126

Ambiant temperature	-40 ° to + 60 ° C
Temperature class	T6
Warranty	2¨
Waterproofing protection (IP)	Ip66
Application / usage	ATEX zone
ATEX zone	Zone 1/2
Gas class	IIC
ATEX protection mode	Ex of
Certificates	Atex.iecex
Material	UV resistant reinforced polyester (GRP)
Certificat_atex-en_us	PTB 01 ATEX 1105
Certificat_iecex-en_us	IECEX PTB 06.0025
Body colors	Red
LED indicator	1¨
Ex e (increased security)	1
Red (RAL 3000)	1
Reinforced polyester (GRP)	1
