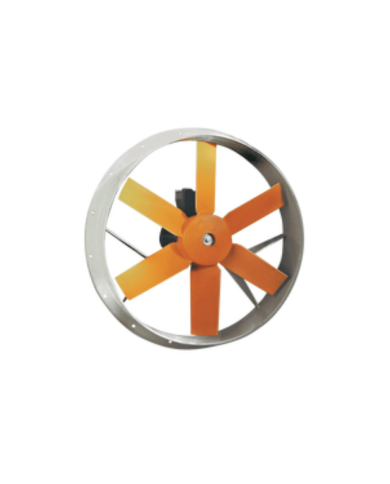

Helicoid fan HCT / ATEX
- IP54
- Air-propeller direction.
- POL version PL in polyamide 6 reinforced with fiberglass and aluminum cast iron version. The 40-2T and 45-2T models exist only in Al.
- Tubular shell made of sheet steel with outdoor terminal box.
- Engines with IE3 yield for powers equal to or greater than 0.75 kW, except single-phase, 2 speeds and 8 poles.
- Class F motors with ball bearings and IP55 protection. Except Monofásicos models of size 45 to size 56, with IP54 protection. 1 ó 2 speeds depending on model.
- single phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (> 4 kW).
- Operating temperature: -25 ºC +50 ºC.
- Air-propeller direction.
- POL version PL in polyamide 6 reinforced with fiberglass and aluminum cast iron version. The 40-2T and 45-2T models exist only in Al.
- Tubular shell made of sheet steel with outdoor terminal box.
- Engines with IE3 yield for powers equal to or greater than 0.75 kW, except single-phase, 2 speeds and 8 poles.
- Class F motors with ball bearings and IP55 protection. Except Monofásicos models of size 45 to size 56, with IP54 protection. 1 ó 2 speeds depending on model.
- single phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (> 4 kW).
- Operating temperature: -25 ºC +50 ºC.
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
These tubular helical fans are designed to provide high strength and durability. Designed for use in demanding environments, they are manufactured with robust materials that provide reliable performance and long service life. Their tubular construction reinforces their structure, to support intensive conditions of use while ensuring effective ventilation.
References Manufacturer: 1028949,1028950,1028951,1028952,1028953,1028954, 1028955,1028956,1028957,1028959,1028958,1028960,1 028963,1028961,1028962,1028965,1028964,1028966,10 28967,1028968,1028970,1028969,1028973,1028972,102 8974,1028975,1028976,1028978,1028977,1028980,1028 979,1028981,1028983,1028982,1028984,1028985,10289 88,1028986,1028989,1028987,1028991,1028992,102894 5,1028942,1028943,1028944,1028946,1028947,1028948, 1028559,1028560,1028561,1028562,1028563,1028564, 1028565,1028566,1028567,1028569,1028568,1028570,1 028573,1028571,1028572,1028575,1028574,1028576,10 28577,1028578,1028580,1028579,1028583,1028582,102 8584,1028585,1028586,1028588,1028587,1028590,1028 589,1028591,1028593,1028592,1028594,1028595,10285 98,1028596,1028599,1028597,1028601,1028602,102855 5,1028552,1028553,1028554,1028556,1028557,1028558
| Ambiant temperature | -25 °C / +50 °C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 230V AC |
| Protection étanchéité (IP) | IP54 |
| Application/Usage | Zone ATEX |
| Zone ATEX | Zone 1/2 |
| Classe de gaz | IIB |
| Mode de protection ATEX | Ex e (sécurité augmentée) |
| Certificats | ATEX.CE |
| Fréquence (Hz) | 50Hz |
| Matière | Alliage de fonte d'aluminium |
