- Stainless steel handset for zone 1, 21
- Certified ATEX and IEC EX - Zone 1, 2, 21, 22
- GRP variant also available IP 66/67
- Up to 115dB 59 Sounds proposed Xenon or LED Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")
(à modifier dans le module "Réassurance")

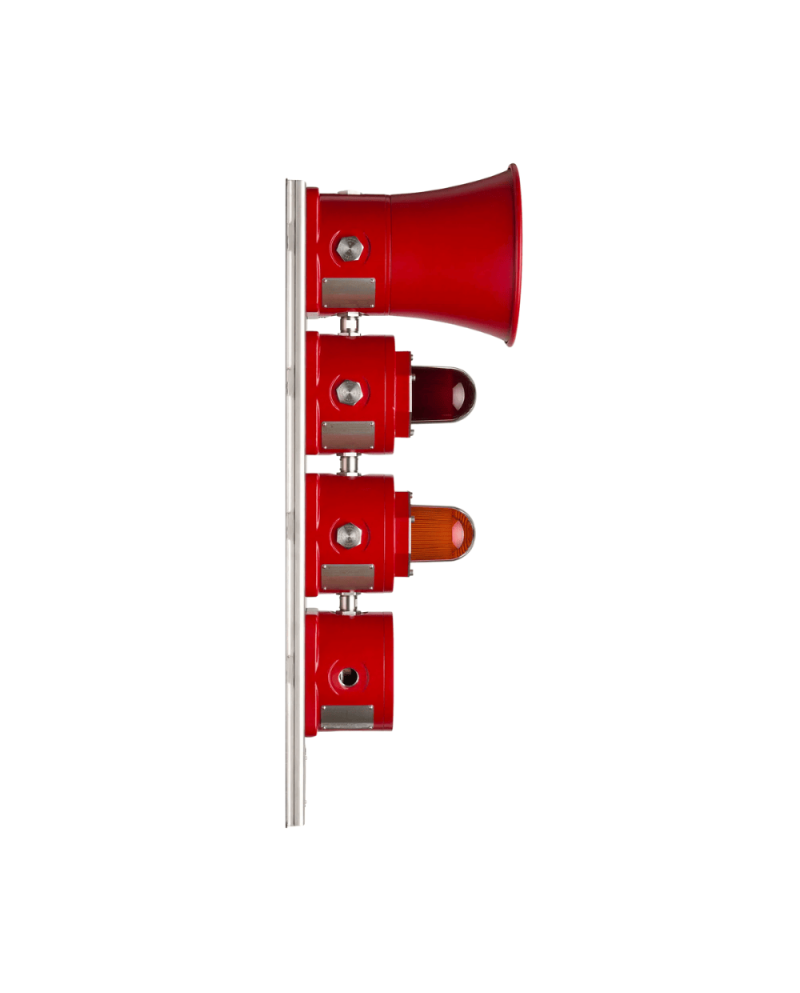

This signaling set SB125-2 / 3 / 4J is composed of a siren and several light tags (maximum 4). It is certified for the ATEX zones of 1 to 2 for the gas and 21 to 22 for dust. It is dedicated for the oil & gas, chemistry, petrochemicals, pharmacy, navy, and all offshore applications. It has been developed for corrosive environments and explosive areas. The tags are offered in 2 technologies. LED fixed fire, flashing, turning different powers. Flash with Xenon tube of different powers. Four flashing frequencies are selectable. For the siren, it is possible to select 1 tone among the 59 pre-recorded, including the main usual alarm tones. The bright tags and the siren can be triggered in a common or independent manner. The assembly is molded and machined in AISI 316L stainless steel covered with a highly resistant UV paint, the verrine is borosilicate glass of different shades, the assembly is assembled on a 316L stainless steel plate. Optionally it is possible to integrate the triggering of the siren or tags with a telephone line. On request one of the bright tags can be replaced by a push button or a junction box and specific customer tones can be prerecorded at the factory. A complete offer of accessories allows you to customize the products.
| Ambiant temperature | -40°C to +55°C |
|---|---|
| Temperature class | T6 |
| Warranty | 3¨ |
| Feed | 12-48V DC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | 316L Stainless Steel |
| Certificat_atex-en_us | 13 ATEX 1566X |
| Certificat_iecex-en_us | IECEX NEM 13.0036X |
| Body colors | Red (RAL3001) |
| Light source | LED |
| Ranting power | 115db |
| LED indicator | 1¨ |
| Power | 10w |
| Light power | 109 CD |
