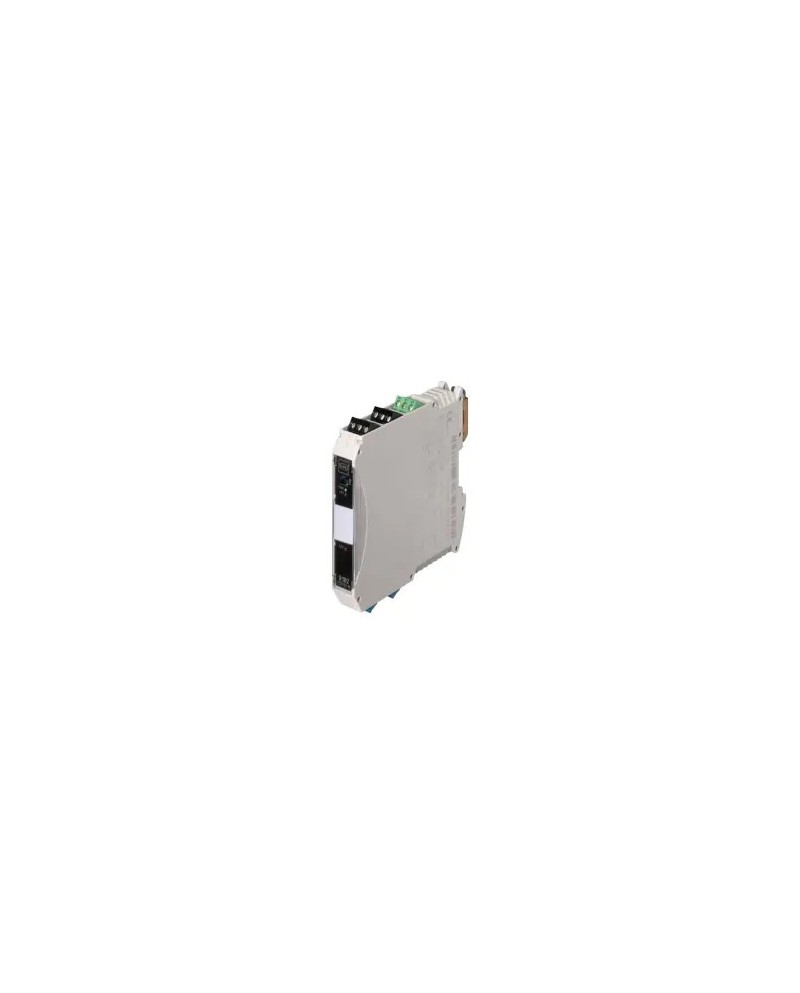

9180 Series Resistance Insulator

- Product Description: Temperature Transmitter Field Circuit Ex i iSpac
- IP20
- Types of signals: temperature entry
- Filter Zone: Zone 2 | 3 g | Goc
- Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), India (Peso), United States (FM), United States (UL)
- Number of channels: 2
- Modular dimension: 17.60 mm
- Connection type: spring terminal
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The ex I temperature transmitters for the field circuits of the 9182 series are used to connect the temperature sensors and the potentiometers. They can be easily configured by software or by means of DIP switches for almost all types of sensors, p. ex. PT100, thermocouples or potentiometers. Variants with limit value function make it possible to evaluate the input signal using two independent contacts. Ex I temperature transmitter, configurable for almost all types of broad spectrum current sensors including variants with signal conversion and limit value function available for SIL 2 applications
References Manufacturer: 160491,160492,160494,160499,160502
Ambiant temperature -20°C to +70°C
Temperature class T4
Warranty
Feed 24V DC
Waterproofing protection (IP) IP30
Application / usage Zone ATEX
ATEX zone Zone 1/2
Gas class IIC
ATEX protection mode Ex i (sécurité intrinsèque)
Certificates ATEX.IECEx.SIL
Material Polyamide
Certificat_atex-en_us BVS 05 ATEX E 176 X
Certificat_iecex-en_us IECEx BVS 10.0055 X
Body colors Blanc
Reference STL0166
