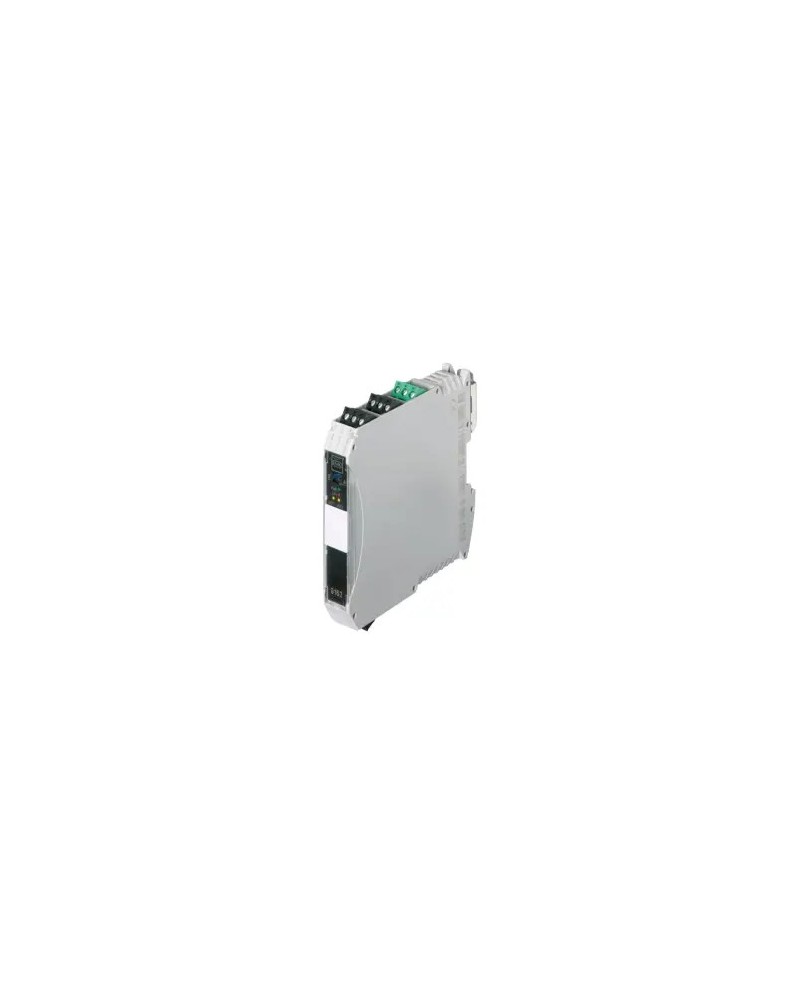

9147 Series Vibration Transmitter Power Supply
- Product Description: Vibration Transmitter Power Supply
- IP20
- Ex i ISPAC field circuit
- Types of signals: Vibration transmitter
- Filter Zone: (M1) / Zone 2 | 3 g | Goc
- Certificates: ATEX (BVS), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), India (Peso), SIL (Exida), United States (FM)
- Sil: 2
- Number of channels: 1
- Modular dimension: 17.60 mm
- Connection type: spring terminal
- IP20
- Ex i ISPAC field circuit
- Types of signals: Vibration transmitter
- Filter Zone: (M1) / Zone 2 | 3 g | Goc
- Certificates: ATEX (BVS), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), India (Peso), SIL (Exida), United States (FM)
- Sil: 2
- Number of channels: 1
- Modular dimension: 17.60 mm
- Connection type: spring terminal
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 9147 series vibration transmitter feeder connects vibration, acceleration and speed sensors with scan systems. Measuring signals are transmitted with frequencies up to 50 kHz with electrical separation. The devices have already been tested with many renowned manufacturers such as Bently Nevada and are used in systems around the world. The compact two-channel variant reduces installation costs Simple adjustment via rotary switch easily accessible to SIL 2 (IEC 61508)
References Manufacturer: 212432,212433,213112
| Ambiant temperature | -20°C to +70°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | Atex.iecex |
| Material | Polyamide |
| Body colors | White |
| Ip30 | 1 |
