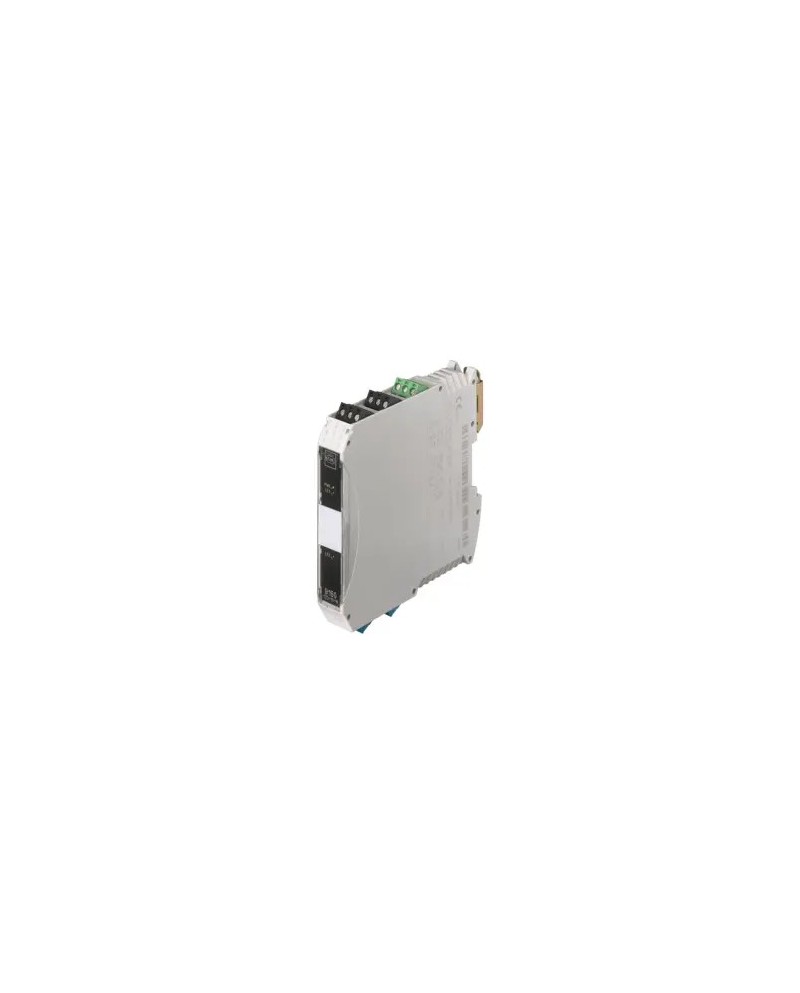

9159 Serial Transmitter Power Supply
- Types of signals: analog input
- IP20
- FILTERING ZONE: (M1) / ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), SIL (Exida), United States (FM)
- Sil: 2
- Number of channels: 1
- Modular dimension: 17.60 mm
- Connection type: Screw terminal
- IP20
- FILTERING ZONE: (M1) / ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), SIL (Exida), United States (FM)
- Sil: 2
- Number of channels: 1
- Modular dimension: 17.60 mm
- Connection type: Screw terminal
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 9160 Series Ex Series Transmitter Power Supplies are used for the safety operation attracted from 2 and 3-wire transmitters or safety-assisted transmitters such as 4-conductor transmitters. The device transmits the HART signals in a bidirectional manner. The portfolio of one and two channel devices comprises as well as a variant to double the signals. Special models for low and sil 3 output voltages are available. Usable in a universal way for 2 and 3-conductor transmitters and MA sources (4-conductor transmitter) Upholstery Usable up to SIL 2, Special variant up to SIL 3 (IEC / EN 61508)
References Manufacturer: 214895,214897,214903,220322,220323,220324
| Ambiant temperature | -20°C to +70°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip30 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | Atex.iecex |
| Material | Polyamide |
| Body colors | White |
