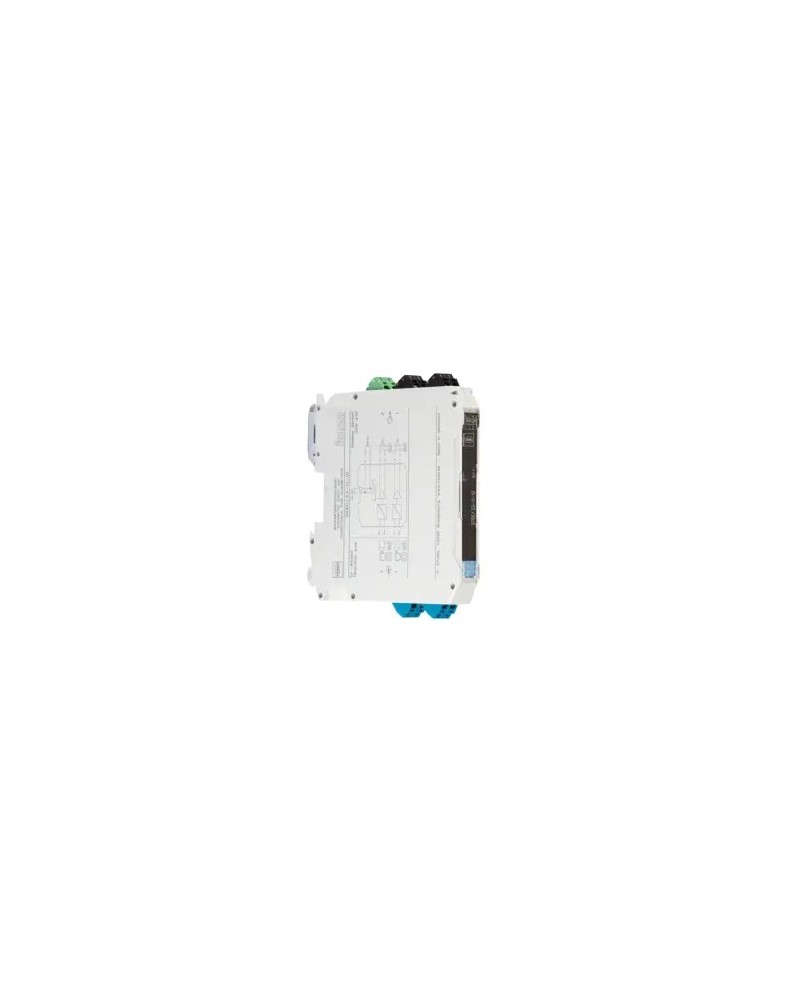

9270 Serial Switching Amplifier
- Types of signals: digital input
- IP20
- Filter area: (M1) / Zone 2 | 3G | Goc
- Sil: 2
- Number of channels: 1
- Modular dimension: 12.50 mm
- Connection type: spring terminal
- IP20
- Filter area: (M1) / Zone 2 | 3G | Goc
- Sil: 2
- Number of channels: 1
- Modular dimension: 12.50 mm
- Connection type: spring terminal
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 9270 Series Ex I switch amplifiers are used for the operation of contacts, Namur initiators or optocouplers. The signals are transmitted to the system via a relay output or an electronic output. The security digital input involved is electrically separated from the output and auxiliary power supply. Place gain thanks to the narrow construction form - 12.5 mm wide usable up to Sil 2 (IEC / EN 61508) Wire and short-circuit failure monitoring, with signaling
References Manufacturer: 261409,261410,261411,261412,261413
| Ambiant temperature | -40 ° to + 70 ° |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | Atex.iecex |
| Material | Polyamide |
| Certificat_atex-en_us | Ibexu17atex1151 x |
| Certificat_iecex-en_us | IECEX IBE 17.0043 X |
| Body colors | White |
