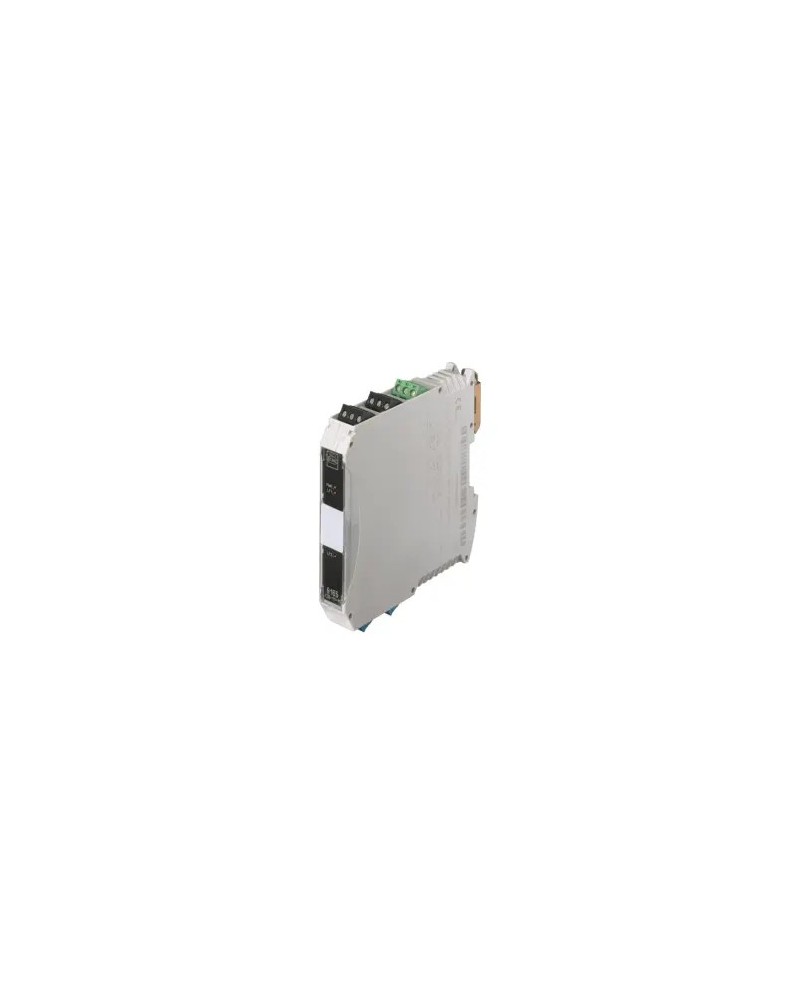

9170 Serial Switching Amplifier
- Filter area: (M1)
- IP20
- Types of signals: digital input
- Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), Korea (KGS), IECEX (BVS), India (Peso), SIL (Exida), United States (FM)
- Sil: 2
- Number of channels: 1
- Modular dimension: 17.60 mm Connection type: Screw terminal
- IP20
- Types of signals: digital input
- Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), Korea (KGS), IECEX (BVS), India (Peso), SIL (Exida), United States (FM)
- Sil: 2
- Number of channels: 1
- Modular dimension: 17.60 mm Connection type: Screw terminal
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 9170 Series Ex I switch amplifiers are used for the operation of contacts, Namur initiators or optocouplers. There are models with 1 and 2 channels; The digital security input involved is always electrically separated from the output and auxiliary power supply. Two-channel devices have an electrical separation of channels. Some variants transmit frequencies up to 10 kHz, the output signal is invertible.
References Manufacturer: 203285,203143,20314,203145,20314,203147,203151,203152,203 281,203282,203283,203284,203294,203295,160309,160298,203153
| Ambiant temperature | -20°C to +70°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip30 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | Polyamide |
| Certificat_atex-en_us | DMT 02 ATEX E 195 x |
| Certificat_iecex-en_us | IECEX BVS 09.0041 X |
| Body colors | White |
| Ex i (intrinsic safety) | 1 |
