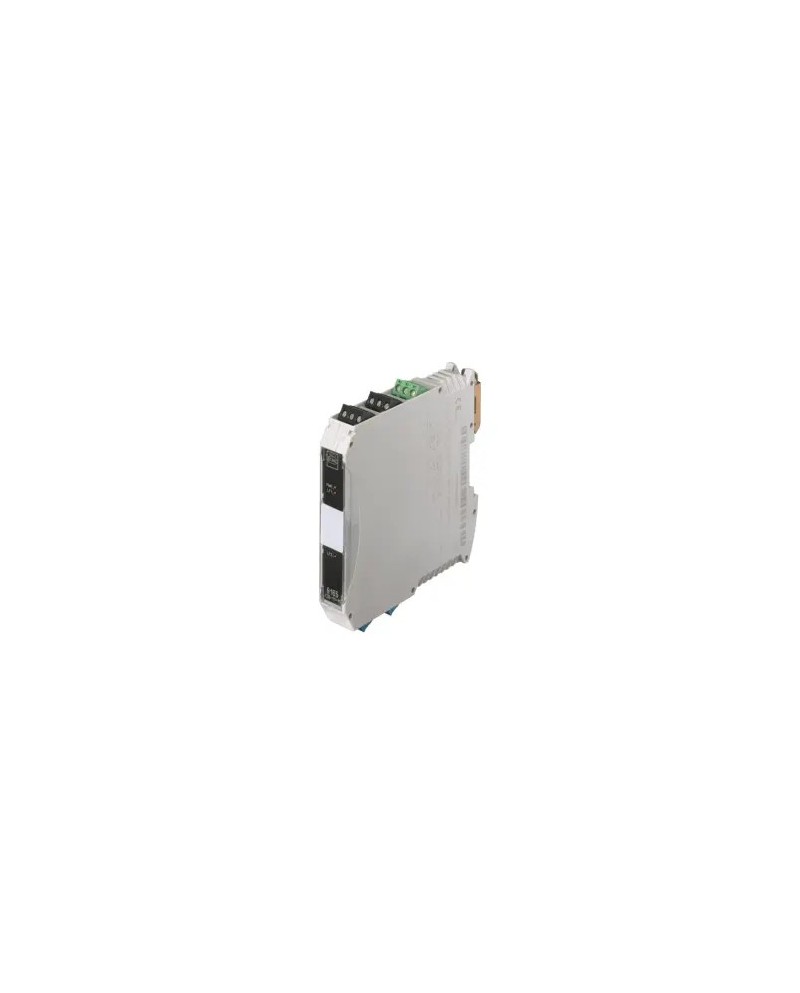

9165 series isolator
- Types of signals: analog output
- IP20
- FILTERING ZONE: ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), SIL (Exida), United States (FM)
- Sil: 2
- Number of channels: 1
- Modular dimension: 17.60 mm
- Connection type: Screw terminal
- IP20
- FILTERING ZONE: ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), SIL (Exida), United States (FM)
- Sil: 2
- Number of channels: 1
- Modular dimension: 17.60 mm
- Connection type: Screw terminal
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The ex: 9165 Series ex I insulators are used for the induced safety of control valves, I / P transmitters or displays. They transmit bid designs the HART superimposed communication signals. The input, the output and the auxiliary power supply are electrically separated from each other. The two channels of two-channel variants are separated from each other electrically.
References Manufacturer: 201270,201271,201272,201273,207909
| Ambiant temperature | -20°C to +70°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | ATEX.IECEx.SIL |
| Material | Polyamide |
| Certificat_atex-en_us | DMT 03 ATEX E 012 X |
| Certificat_iecex-en_us | IECEX BVS 10.0011 x |
| Body colors | White |
| Ip30 | 1 |
