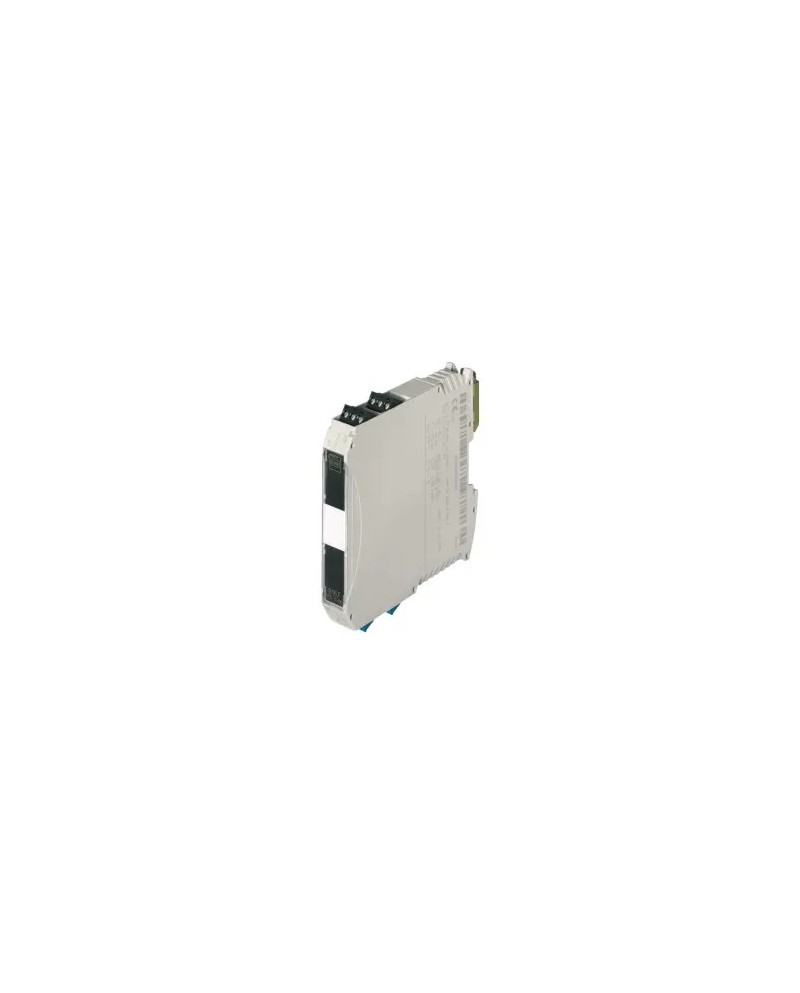

Insulator without auxiliary power supply 9167
- Types of signals: analog output
- IP20
- FILTERING ZONE: ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Canada (FM), IECEX (BVS), SIL (Exida), United States (FM), United States (UL)
- Sil: 3
- Number of channels: 1
- Modular dimension: 17.60 mm
- Connection type: Screw terminal
- IP20
- FILTERING ZONE: ZONE 2 | 3G |
- GC Certificates: ATEX (BVS), Canada (FM), IECEX (BVS), SIL (Exida), United States (FM), United States (UL)
- Sil: 3
- Number of channels: 1
- Modular dimension: 17.60 mm
- Connection type: Screw terminal
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The ex-9167 series ex I insulators operating without auxiliary power and serve the motivated safety operation, p. ex. Control valves, I / P transmitters, analog displays, gas or fire detectors. The devices have 1 or 2 channels and connect HART signals (0/4 to 20 mA) via the analog output. They transmit bid designs the HART superimposed communication signals.
References Manufacturer: 160244,160247,160248
| Ambiant temperature | -20°C to +70°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | Atex.iecex |
| Material | Polyamide |
| Certificat_atex-en_us | BVS 04 ATEX E 082 X |
| Certificat_iecex-en_us | IECEX BVS 11.0089 X |
| Body colors | White |
| Ip30 | 1 |
