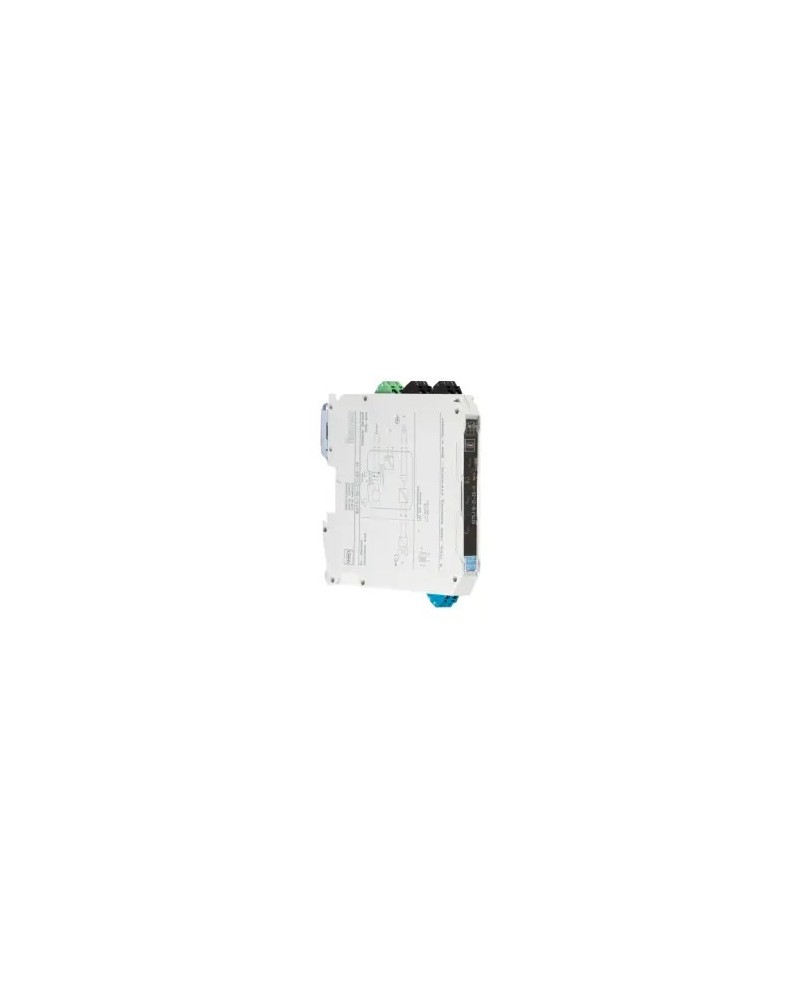

9275 series binary output
- IP20
- Product Description: Binary output Field circuit ex i
- Types of signals: digital output
- Filter Zone: Zone 2 | 3 g | Goc
- Sil: 3
- Number of channels: 1
- Modular dimension: 12.50 mm
- Connection type: Screw terminal
- Product Description: Binary output Field circuit ex i
- Types of signals: digital output
- Filter Zone: Zone 2 | 3 g | Goc
- Sil: 3
- Number of channels: 1
- Modular dimension: 12.50 mm
- Connection type: Screw terminal
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 9275 Series digital outputs provide signals for intrinsically safe operation of ex i solenoid valves, light lights or sirens. The devices have a 3-way electrical separation.
References Manufacturer: 261434,261435
| Ambiant temperature | -20°C to +60°C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex i (intrinsic safety) |
| Certificates | ATEX.IECEx.SIL |
| Material | Polyamide |
| Certificat_atex-en_us | IBEXU 17 ATEX 1152 X |
| Certificat_iecex-en_us | IECEX IBE 17.0044X |
| Body colors | White |
