ATEX Series 9176 binary output: 1,2 -A2S zone

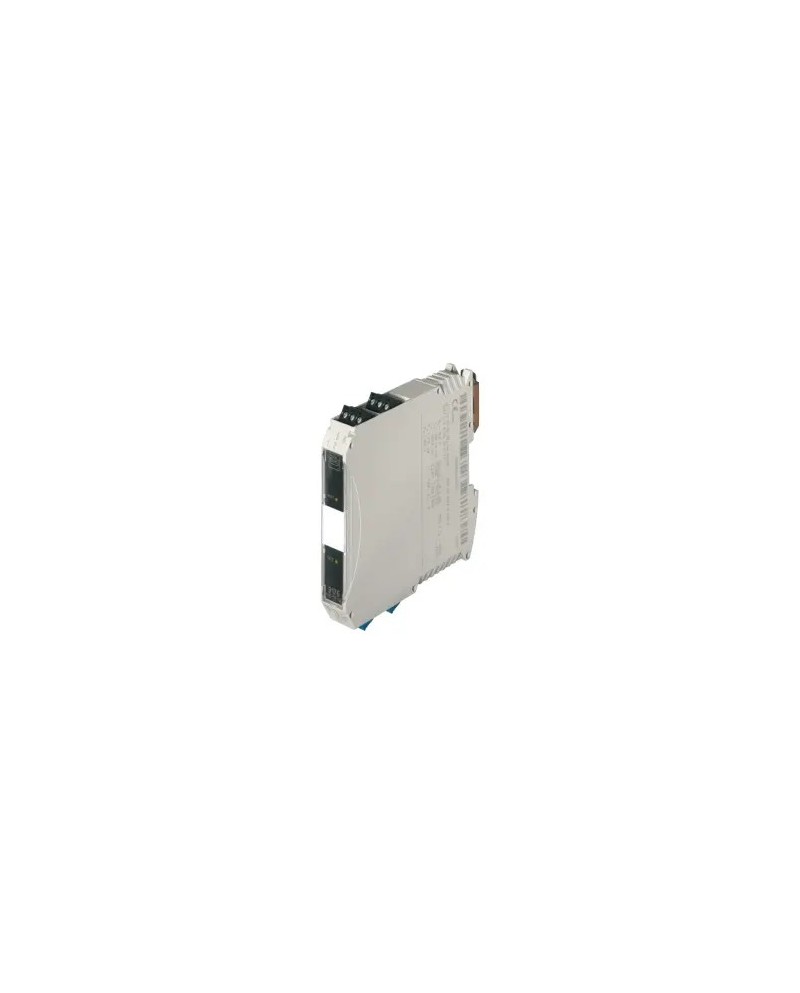

Binary output without auxiliary power supply 9176

Name: Binary output without auxiliary power supply 9176
Brand: R. Stahl
SKU: STL0151

- Types of signals: digital output
- IP20
- Filter Zone: Zone 2 | 3 g | Goc
- Certificates: ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), Korea (KTL), IECEX (BVS), SIL (Exida), United States (FM)
- Sil: 3
- Number of channels: 2
- Modular dimension: 17.60 mm
- Connection type: Screw terminal

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The 9176 series binary outputs provide binary signals for intrinsically safe operation of ex i solenoid valves, light lights or sirens. Devices do not need separate auxiliary power as they are powered by the control circuit. The intrinsic safety outputs are separated from electrically entrances. Two-channel variants are distinguished by electrical separation channels.

References Manufacturer: 222180,222182,222183,222184

Ambiant temperature	-20°C to +70°C
Temperature class	T4
Warranty	2¨
Feed	24V DC
Waterproofing protection (IP)	Ip30
Application / usage	ATEX zone
ATEX zone	Zone 1/2
Gas class	IIC
ATEX protection mode	Ex i (intrinsic safety)
Certificates	ATEX.FM.IECEx.SIL
Material	Polyamide
Certificat_atex-en_us	BVS 04 ATEX E 075 X
Certificat_iecex-en_us	IECEX BVS 13.0012 x
Body colors	White
