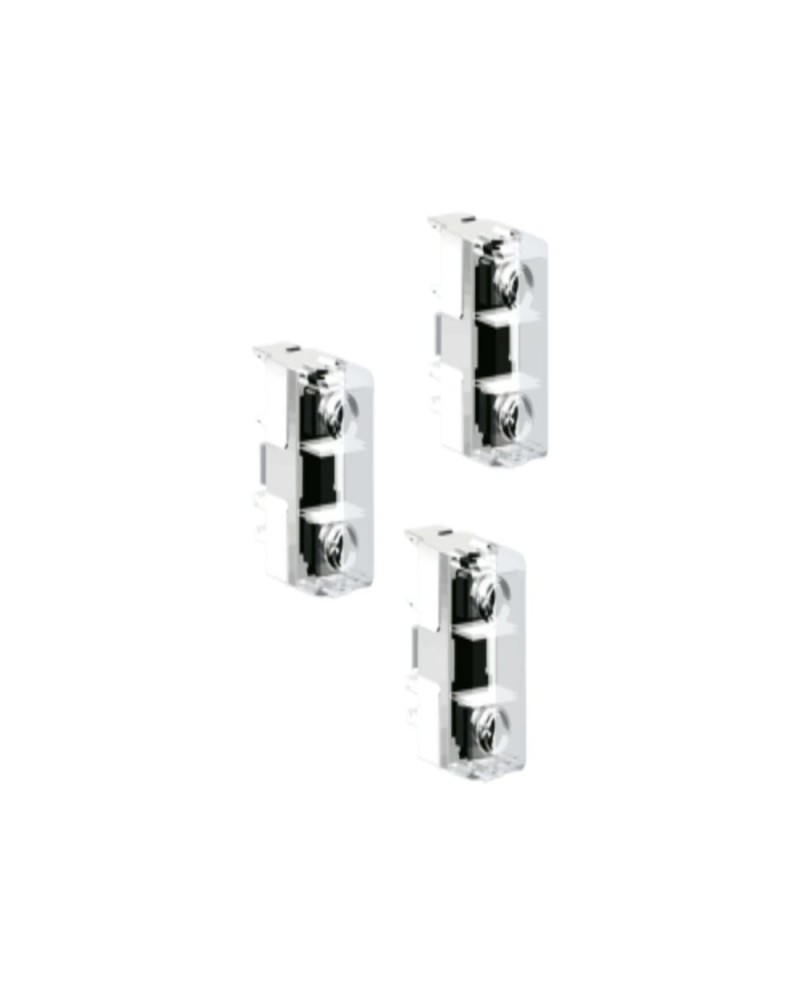

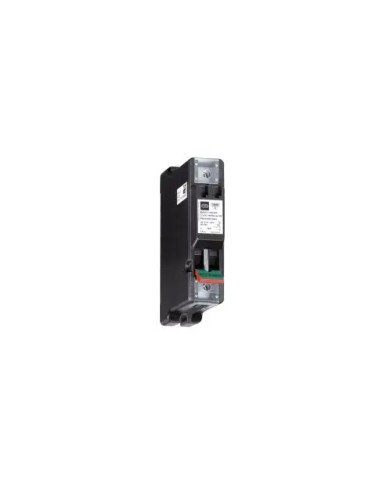

Small ATEX series 8560 fuse element
- IP20
- Minimum ambient temperature: -50 ° C
- Maximum ambient temperature: +70 ° C
- Assigned service current: 0.800 A
- Assigned voltage of use AC: 250 V
- Filter Zone: M2 | MB / Zone 1 | 2 g | GB / ZONE 2 | 3 g | Goc
- Minimum ambient temperature: -50 ° C
- Maximum ambient temperature: +70 ° C
- Assigned service current: 0.800 A
- Assigned voltage of use AC: 250 V
- Filter Zone: M2 | MB / Zone 1 | 2 g | GB / ZONE 2 | 3 g | Goc
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The small 8560 fuse element of R. Stahl is an inexpensive protection fuse for control circuits. It is designed for assigned employment tensions up to 250 V and assigned operating currents up to 6.3 A, and is available for different cutoff characteristics. It is snapped on standard rails (TS 15, 35, 32). The terminal cover protected against contacts with the fingers meets the requirements of the degree of protection IP20.
References Manufacturer: 149129,149147,149156,149159,149161,149163,166,149171,149176,213 075,168351,149123,213073,149126,213074,132,213076,139135,213077,139138, 149174,149141,213078,149144,213079,213080,149150,149175,149153,213081,14 9157,149178,213082,213083,213084,149170,171143,171144,149172,149168,171145
| Ambiant temperature | -50 ° C to + 58 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | max. 500 V AC. 250V DC |
| Waterproofing protection (IP) | Ip20 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 99 ATEX 2158 U |
| Certificat_iecex-en_us | IECEX PTB 06.0056U |
| Body colors | White |
| Zone 1/2 | 1 |
| Ex d (explosion) | 1 |
| T4 | 1 |
| -50 ° C to + 70 ° C | 1 |
