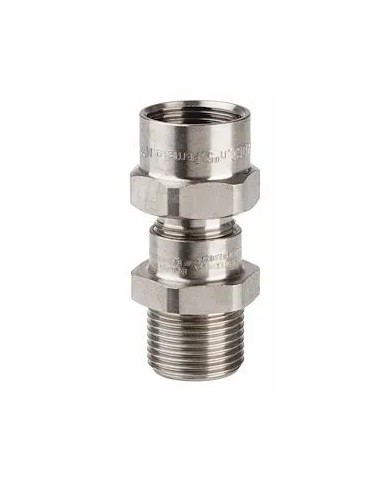

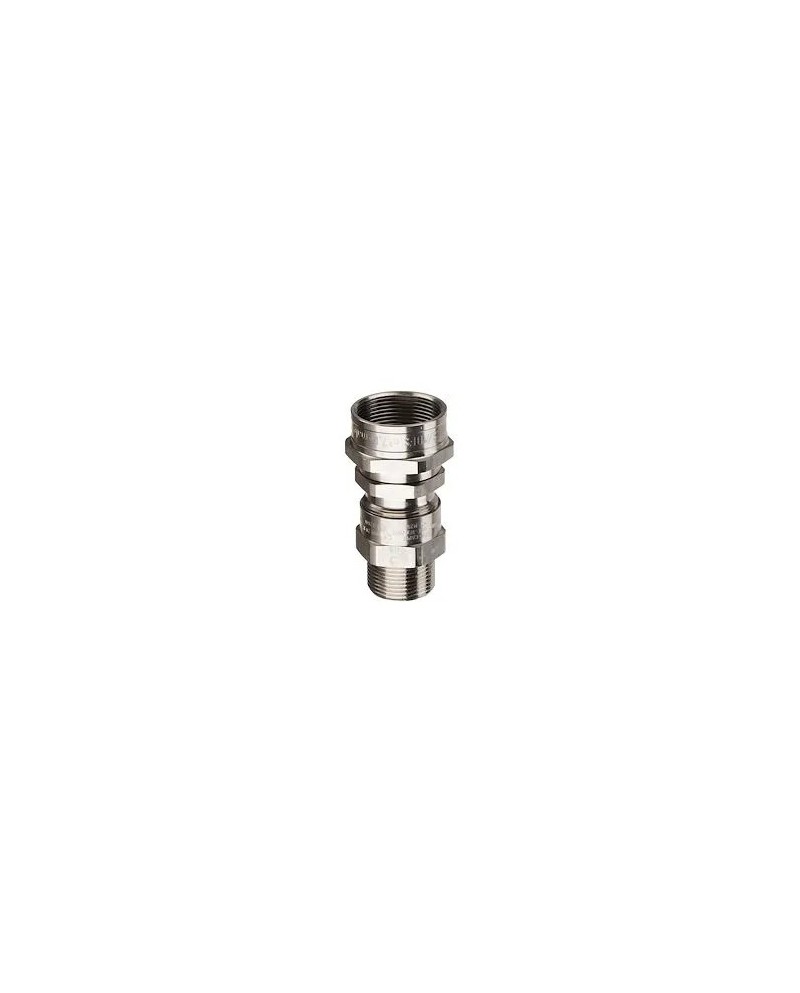

The range of adcs cable glands for conduit allows the connection of a non-armed cable in a rigid duct. The ADCS is available in nickel-plated brass and also 316L stainless steel for better corrosion resistance. The male thread can be ISO or NPT, and the female thread can be ISO, NPT or BSPP. The conduit provides cable with maximum mechanical protection in extreme environments. This type of duct connection can be used for expanded antidoflagrant applications (ex d), increased safety (ex e) or simply industrial. Explusing sealing is ensured by a silicone ring, which offers a wide operating temperature range of -60 ° C to +140 ° C. The female thread of the ADCS is rotating to allow direct connection of a rigid industrial duct.
- Brand
- Cooper CAPRI
- Reference
- EAT0002
- ATEX zone
- Zone 1/2
- Ambiant temperature
- -60°C to +140°C
- Waterproofing protection (IP)
- Ip66.ip68
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- Atex.iecex
- Material
- 316L Stainless Steel
- Threading size
- M20
