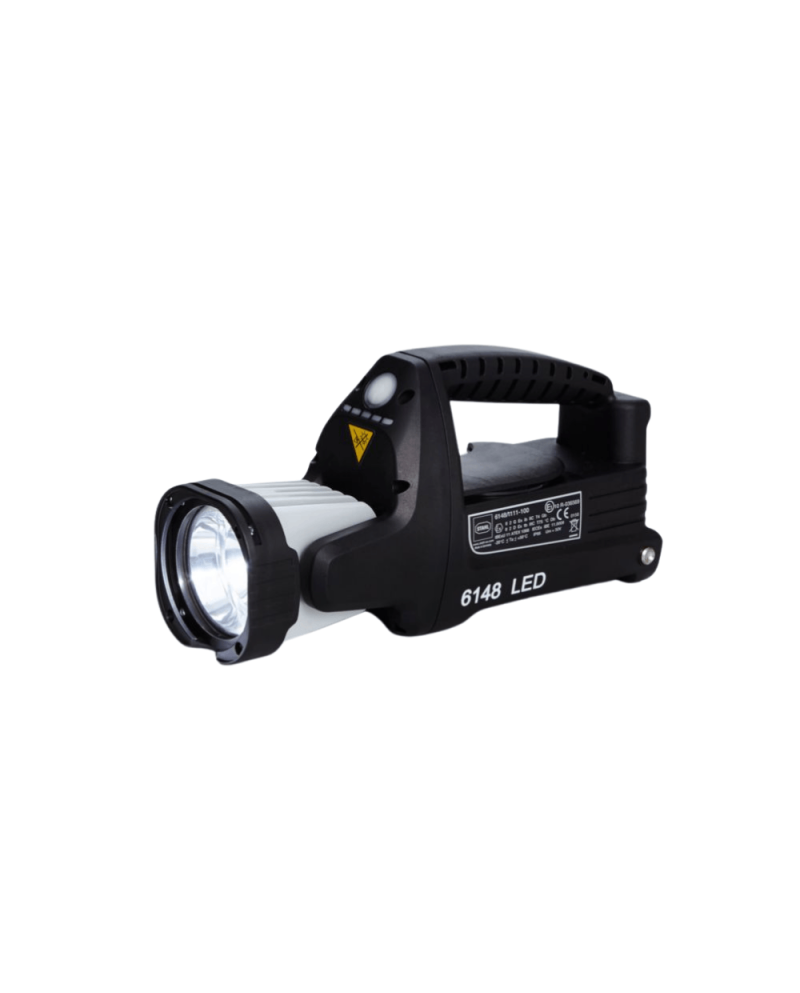

ATEX Series 6148 LED Portable Projector: 1,2 -A2S zone

Portable LED Series 6148 LED Projector

Name: Portable LED Series 6148 LED Projector
Brand: R. Stahl
SKU: STL0181

- IP66
- Product Description: Portable Projector LED Full Game
- Minimum ambient temperature: -20 ° C
- Maximum ambient temperature: +50 ° C
- Outdoor reach: 200.00 m
- AC assigned voltage AC: 110 - 240 V
- Filter area: zone 1 | 2G | Go / Zone 2 | 3G | GC / Zone 21 | 2D | Db / zone 22 | 3D |
- Certificates DC: ATEX (IBE), IECEX (IBE)
- Lamp: LED
- Luminous intensity: 40000.0000 CD

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The portable LED 6148 projector allows ergonomic use with one hand, and can be graduated continuously or switched to flashing mode. The orientable projector head directs the light beam in almost all directions. Colorful diffusers make the projector a movable ex signaling luminaire. It is approved for use in vehicles and performs a backup lighting function as an unity with the charger support. LED technique ensuring low energy consumption and a high luminous intensity approved according to the standard steerable lamp head on 190 ° Extremely reduced weight lights continuously for main light battery life Ergonomic use of one hand

References Manufacturer: 209686,209687,268713

Ambiant temperature	-20 ° C to + 50 ° C
Temperature class	T4
Warranty	2¨
Feed	12V DC
Waterproofing protection (IP)	Ip66
Application / usage	ATEX zone
ATEX zone	Zone 1/2
Gas class	IIC
ATEX protection mode	Ex i (intrinsic safety)
Certificates	Atex.iecex
Frequency (Hz)	50 / 60hz
Material	Polyamide
Certificat_atex-en_us	IBEXU 11ATEX 1066
Certificat_iecex-en_us	IECEX IBE 11.0009
Body colors	Black
Light source	LED
Color temperature	6500k
Charger	1¨
Ex e (increased security)	1
