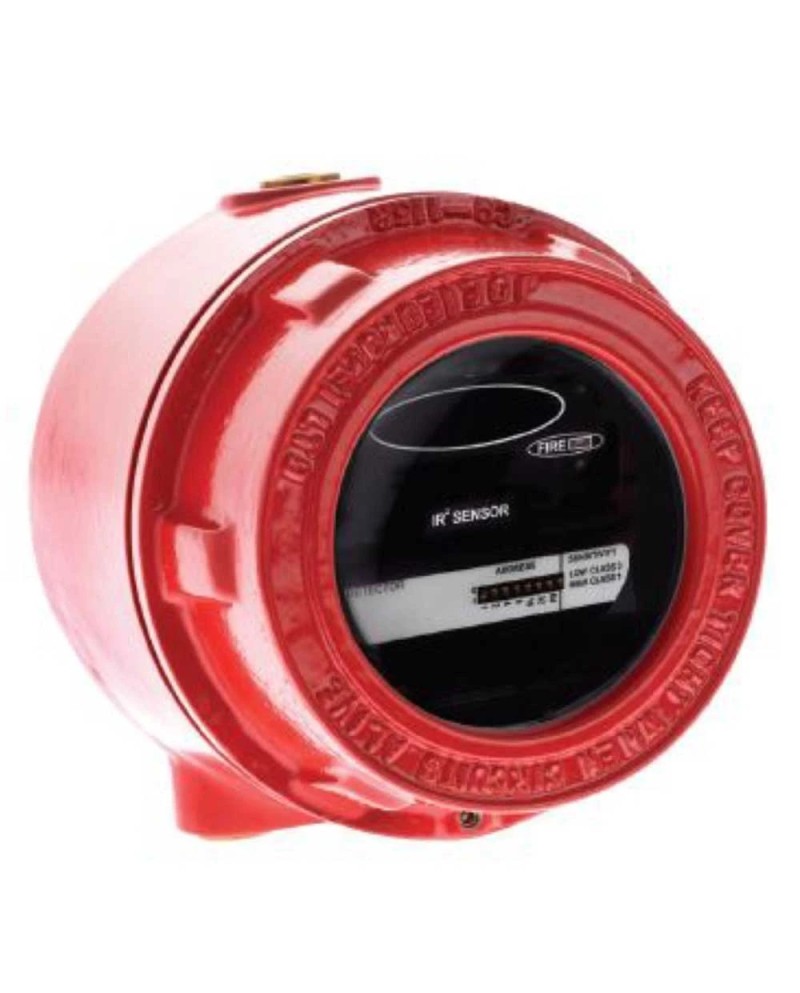

Flame Detector IR² NF ATEX
- IP66
- High resistance to false alerts
- Fast fire detection
- Configurable response speed
- Multiple spectrum detection
- Configurable sensitivity level
- dedicated to critical applications
- Explosion (ATEX)
- Smokes, vapors, dust and drops of water
- to drafts, wind or warm current
- Response to multiple types of resistant flames
- Suitable for interior spaces
- High resistance to false alerts
- Fast fire detection
- Configurable response speed
- Multiple spectrum detection
- Configurable sensitivity level
- dedicated to critical applications
- Explosion (ATEX)
- Smokes, vapors, dust and drops of water
- to drafts, wind or warm current
- Response to multiple types of resistant flames
- Suitable for interior spaces
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Infra-Red Double Flame Detector (IR²) explosion is created to protect explosive areas where lights can be declared. It detects all types of flames comprising hydrocarbon fires or the invisible hydrogen lights. The IR² is sensitive to low-frequency infrared radiation that can be emitted during combustion and even if the lens is obstructed by a layer of oil, dust, water, steam or ice. It has two infra-red sensors that meet different infrared waves to differentiate flames and sources of parasitic radiation. False alarms caused by sun rays are avoided through a filter combination and technical signal processing.
References Manufacturer: NUG30107
| Warranty | 2¨ |
|---|---|
| Waterproofing protection (IP) | Ip66 |
| Application / usage | En-54 |
| ATEX zone | Zone 1/21 |
| Certificates | ATEX |
| Material | Aluminum |
| Body colors | Red |
| Type of detection | Ir2 |
