Conventional Exd Flame Detector (IR3) - Explosion [SIL2]
- Certified ATEX and IECEX: II2GD EX D IIC T4 GB EX TB IIICT135 ° C dB IP66 A21 (Zones 1, 21, 2 and 22)
- Selectable output options: two conventional wires, 4-20 mA, lockable or non-lockable, relay contacts - Fire / default, pre-alarm
- Class 1 sensitivity according to EN 54-10 detects a fire of 0.1 m2 to 25 m
- High immunity to optical interference
- selectable response speed
- Optical self-test
- Low energy consumption
- Selectable output options: two conventional wires, 4-20 mA, lockable or non-lockable, relay contacts - Fire / default, pre-alarm
- Class 1 sensitivity according to EN 54-10 detects a fire of 0.1 m2 to 25 m
- High immunity to optical interference
- selectable response speed
- Optical self-test
- Low energy consumption
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

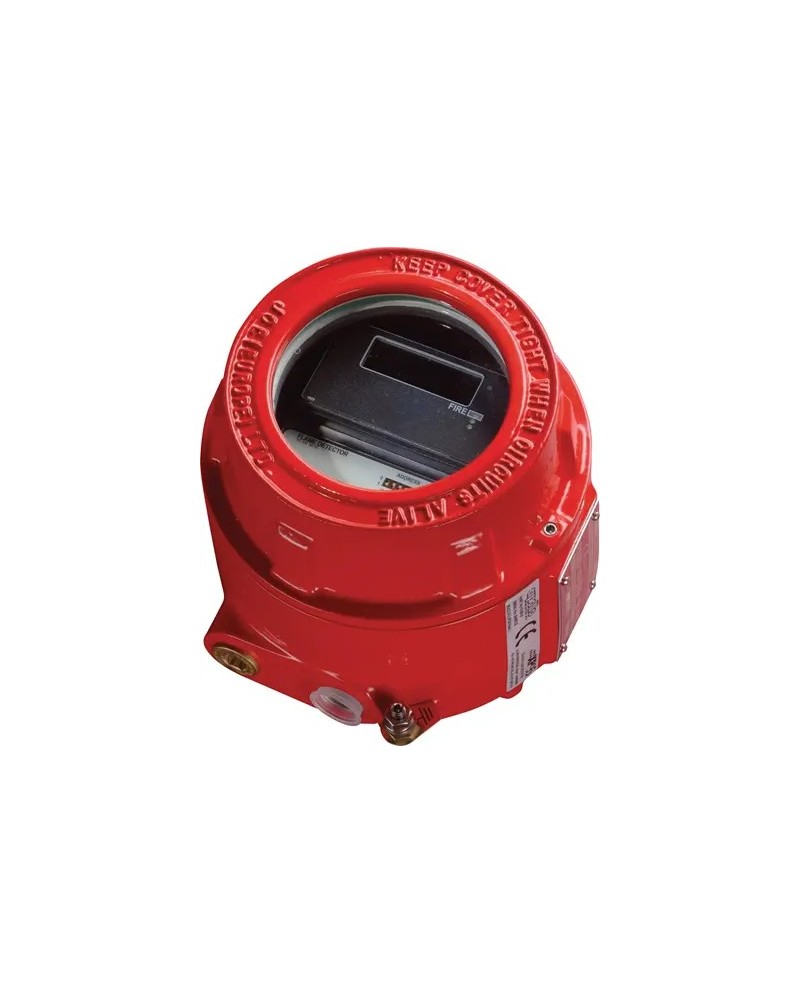

The conventional ExD Flame Detector (IR3) is specially designed for use in potentially explosive environments, with explosion protection. Featuring three infrared sensors, it allows precise and rapid detection of flames while potentially being the risk of false alarms caused by spurious radiation sources. Its robust and secure design makes it an ideal choice for industrial applications in high-risk areas. This detector ensures reliable monitoring and enhanced security, essential to protect sensitive fire facilities.
References Manufacturer: 55000-062APO
| Temperature class | T4 |
|---|---|
| Warranty | 2¨ |
| Application / usage | Zone ATEX |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (antidéflagrant) |
| Certificates | ATEX.IECEx |
| Body colors | Rouge |
| Type of detection | IR3 |
