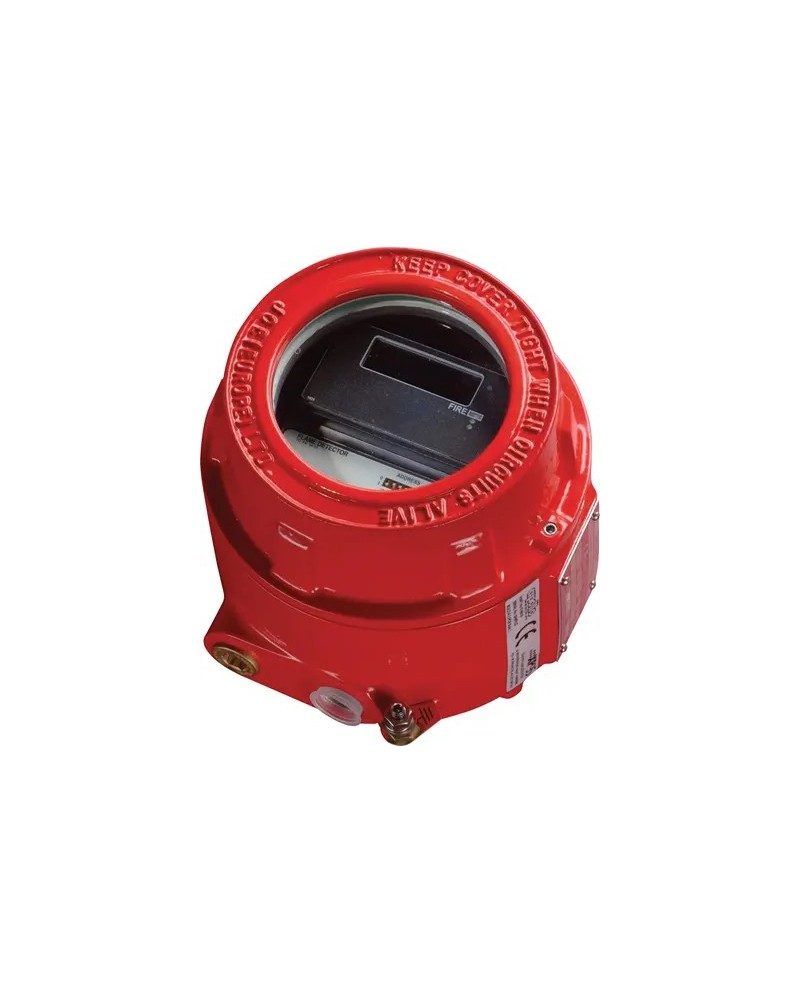

Conventional Exd Flame Detector (IR2) - Explosion-proof [SIL2]
- Certified ATEX and IECEX: II2GD EX D IIC T4 GB EE TB IIICT135 ° C dB IP66 A21 (Zones 1, 21, 2 and 22)
- Selectable output options: two conventional wires, 4-20 mA, lockable or non-lockable, relay contacts - Fire / default, pre-alarm
- Class 1 sensitivity according to EN 54-10 detects a fire of 0.1 m2 to 25 m
- High immunity to optical interference
- selectable response speed
- Optical self-test
- Low energy consumption
- Selectable output options: two conventional wires, 4-20 mA, lockable or non-lockable, relay contacts - Fire / default, pre-alarm
- Class 1 sensitivity according to EN 54-10 detects a fire of 0.1 m2 to 25 m
- High immunity to optical interference
- selectable response speed
- Optical self-test
- Low energy consumption
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The conventional ExD Flame Detector (IR2) is designed for potentially explosive environments, providing explosioning protection. Equipped with two infrared sensors, it effectively detects flames while minimizing false alarms due to spurious radiation sources. Its robust design and explosion envelope make it an ideal choice for industrial applications in risk areas, ensuring reliable monitoring and increased fires against fire. This detector ensures a quick response, essential for the protection of sensitive installations.
References Manufacturer: 55000-061APO
| Temperature class | T4 |
|---|---|
| Warranty | 2¨ |
| Waterproofing protection (IP) | IP66 |
| Application / usage | Zone ATEX |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| Certificates | ATEX.IECEx |
| Body colors | Rouge |
