Conventional Flame Detector (IR3) [SIL2]
- Class 1 sensitivity according to EN 54-10 detects a fire of 0.1 m2 to 25 m
- High immunity to optical interference
- Selectable Self-Test Optical Response Speed
- Low energy consumption
- Compliant with the IP65 standard
- Power supply 14 to 30 VDC
- Operating temperature -10 ° C to + 55 ° C
- High immunity to optical interference
- Selectable Self-Test Optical Response Speed
- Low energy consumption
- Compliant with the IP65 standard
- Power supply 14 to 30 VDC
- Operating temperature -10 ° C to + 55 ° C
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

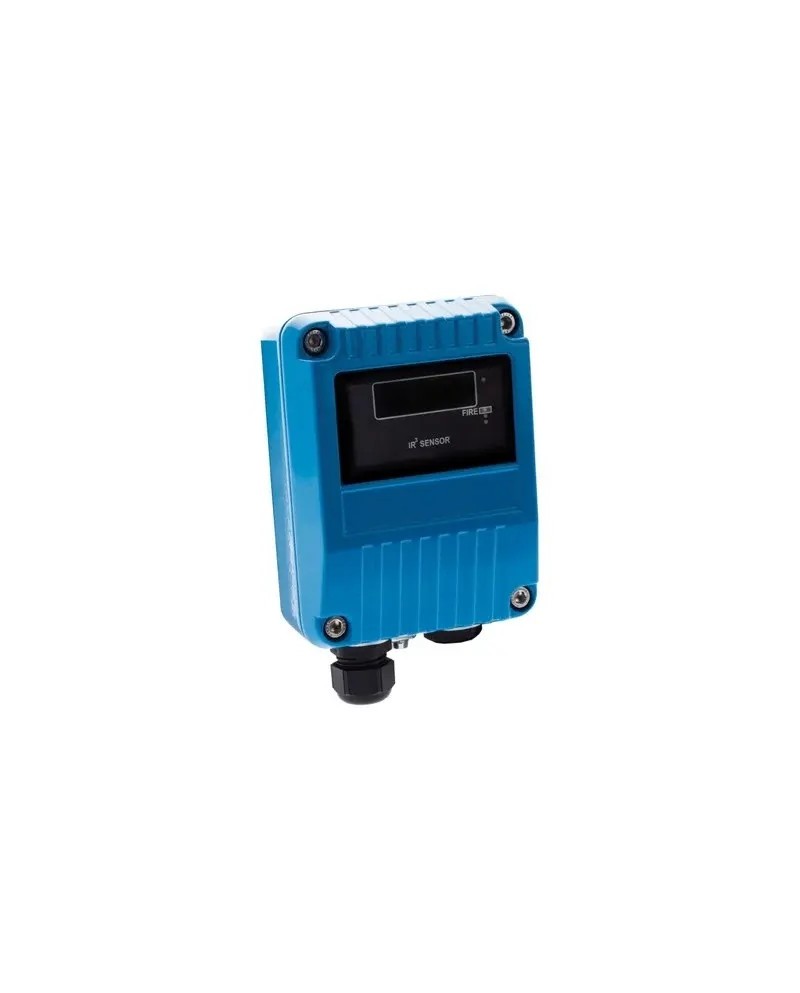

The conventional flame detector (IR3) is designed to provide reliable fire detection in varied environments. Featuring three sensitive sensors at different infrared wavelengths, it makes it possible to effectively differentiate flames from parasitic radiation sources. This advanced technology ensures a quick response while minimizing false alarms. Ideal for industrial applications, this detector guarantees optimal protection against fire risks, even in difficult conditions.
References Manufacturer: 55000-019APO
| Ambiant temperature | -10°C à +55°C |
|---|---|
| Warranty | 2¨ |
| Waterproofing protection (IP) | IP65 |
| Application / usage | Zone ATEX |
| Certificates | CE |
| Body colors | BLEU |
| Type of detection | IR3 |
