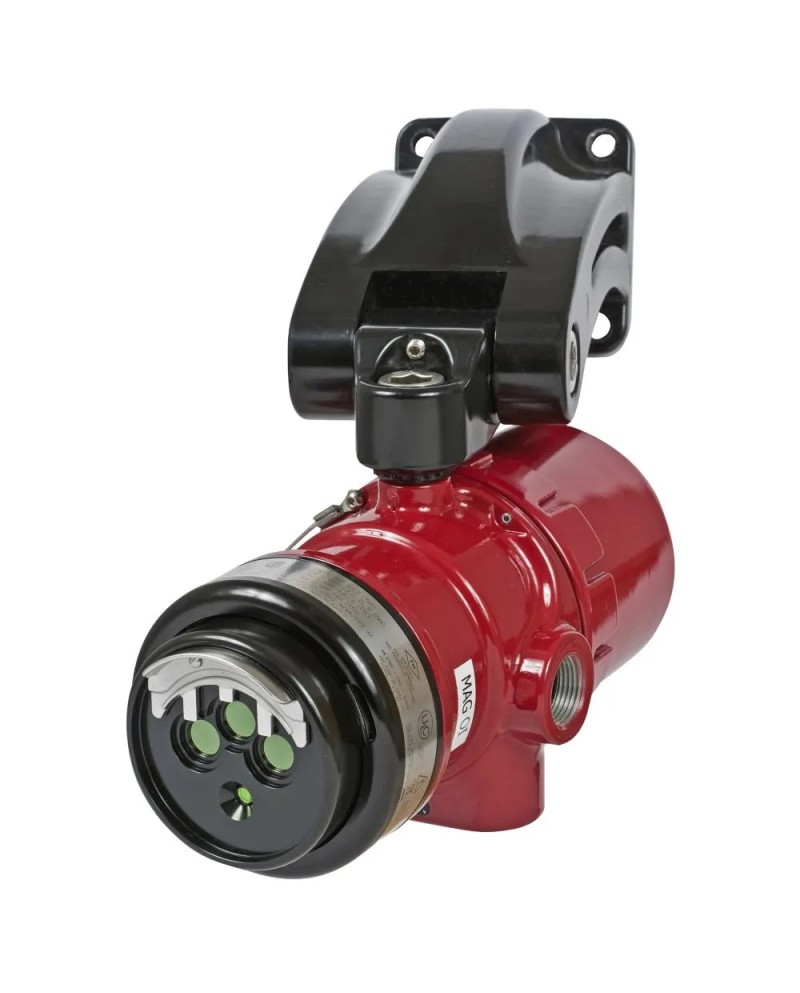

ATEX X3301 Flame Optical Detector
- IP66
- Certified performance for multiple fuel types and fire sizes
- Infrared technology
- Conventional Extended detection range for carbon lamps
- Reject maximum false alarms
- Multiple sensitivity level
- Diagnosis of disturbance
- Certified performance for multiple fuel types and fire sizes
- Infrared technology
- Conventional Extended detection range for carbon lamps
- Reject maximum false alarms
- Multiple sensitivity level
- Diagnosis of disturbance
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
If your fire safety system is in an explosive zone, it is necessary to install ATEX certified products. The X3301 is a conventional multi-frequency infrared ATEX flame detector for hydrocarbon fires. Its technology ensures continuous protection especially for applications requiring maximum level of rejection of false alarms and extremely high fire detection performance. This automatic waterproof detector can be installed both outdoors and indoors. It is ideal for detection in waste, warehouse or oil, gas, chemical and pharmaceutical industries.
References Manufacturer: NUG30295
| Ambiant temperature | -40 ° C to + 75 ° C |
|---|---|
| Warranty | 2¨ |
| Feed | 18-48V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| Certificates | Atex.ce |
| Material | Aluminum |
| Body colors | Red |
| LED indicator | 1¨ |
| Type of detection | Ir3 |
