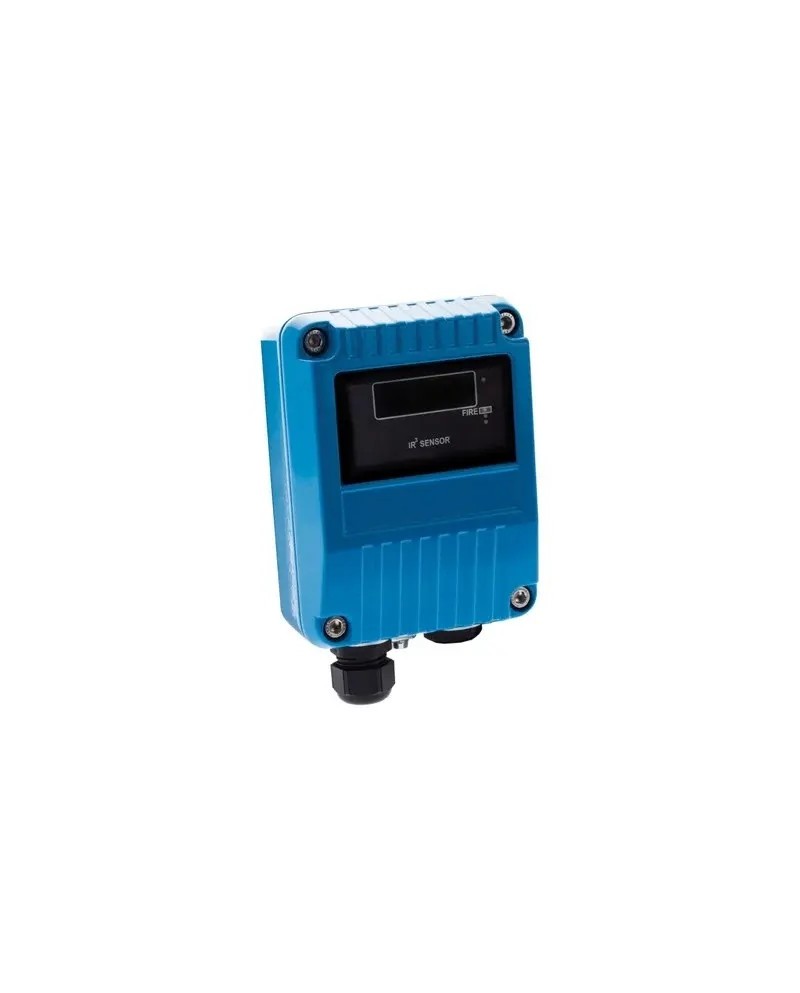

Conventional flame detector I.S. (Ir3) [SIL2]
- Certified ATEX and IECEX: II 1 g
- CENELEC / IEC certification: GA EX IA IIC T4
- Class 1 sensitivity according to EN 54-10 detects a fire of 0.1 m2 to 25 m
- High immunity to optical interference
- selectable response speed
- Optical self-test
- Low energy consumption
- CENELEC / IEC certification: GA EX IA IIC T4
- Class 1 sensitivity according to EN 54-10 detects a fire of 0.1 m2 to 25 m
- High immunity to optical interference
- selectable response speed
- Optical self-test
- Low energy consumption
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Conventional Flame Detector (IR3) is designed to provide accurate flame detection in difficult environments. Featuring three infrared sensors, it detects different wavelengths to quickly identify flames while minimizing false alarms caused by spurious radiation sources. Its robust design makes it ideal for industrial applications, ensuring optimal safety in risk areas. This detector ensures a quick and reliable answer, essential for fire protection.
References Manufacturer: 55000-063APO
| Ambiant temperature | -10 ° C to + 40 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Application / usage | ATEX zone |
| Gas class | IIC |
| Certificates | Atex.iecex |
| Body colors | BLUE |
| Type of detection | Ir3 |
