Replica Touch - Operating Report Table -A2S

Operating Report Table (TRE) for SSI - Replica Touch

Name: Operating Report Table (TRE) for SSI - Replica Touch
Brand: Nugelec
SKU: CSE0204

- IP30
- Management of ECS and CMSI information
- Selection filters of areas to display
- Modern design and aesthetics
- Compatible with ECS & CMSI Sensea, ECA, ECB
- Reduced dimensions: 164 x 155 x 40 (mm)
- Bee nest pad for existing drilling recovery
- Large cable volume with fast terminal
- Simplicity of embroiling the product allowing the change of a delay without cutting the delay line
- Automatic terminals not requiring screwdrivers

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

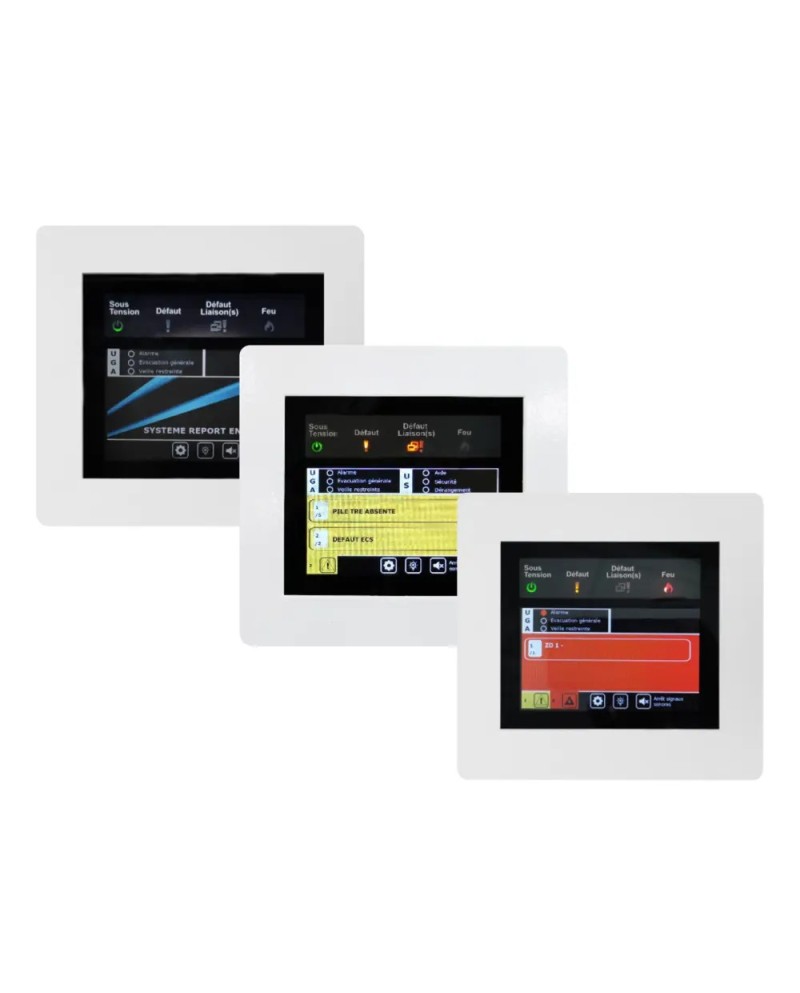

The Transplica Touch Operating Postponement Table is equipped with a color touch screen and allows information for the status of the fire safety system (SSI). It offers great ease of operation because it allows to manage the data communicated by the ECS or CMSI. It avoids the installation of two distinct operating deferral tables. The displayed icons are very intuitive to immediately understand the message transmitted. Its use is thus facilitated for building staff. In addition, the large color screen simplifies reading for safer operation, which allows more reactive doubts. Finally its sleek and neutral design does not impact the building architecture in which it is installed. Replica Touch also offers increased safety, in accordance with the new NF 61-941 standard. A battery is integrated into the explusion table

References Manufacturer: NUG31316, NUG31317, NUG31318
