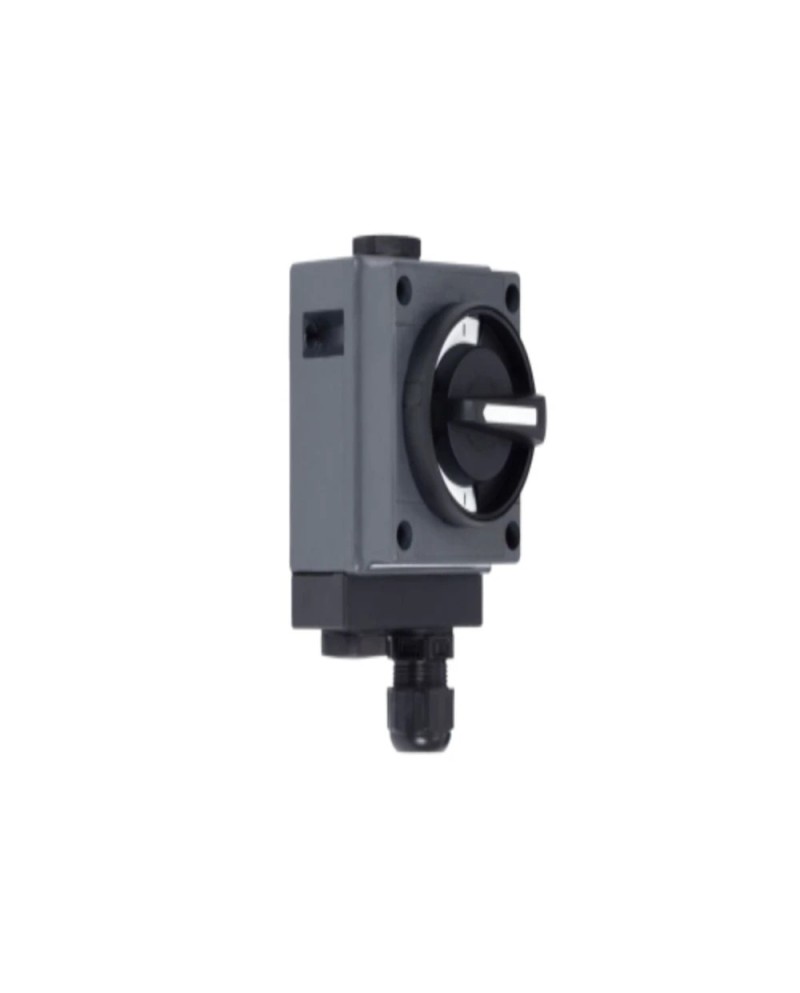

ATEX Series 8040/11-V30 Installation Switches
- Minimum ambient temperature: -20 ° C
- Maximum ambient temperature: +55 ° C
- Certificates: ATEX (PTB), Brazil (ULB), China (NEPSI), IECEX (PTB), India (Peso)
- Cable glands: 1 x m25 Ø 7 ... 17 mm
- IP66
- Maximum ambient temperature: +55 ° C
- Certificates: ATEX (PTB), Brazil (ULB), China (NEPSI), IECEX (PTB), India (Peso)
- Cable glands: 1 x m25 Ø 7 ... 17 mm
- IP66
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 8040/11-V30 series installation switches are used for switching lighting systems. The switching position is clearly indicated by the circuit at 90 °. This is advantageous when the lighting system and the switch are housed in different parts. The fluorescent rotary handle allows orientation in the event of a lighting failure.
References Manufacturer: 245655,245657,245656,245658
| Ambiant temperature | -20°C to +55°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 220V av |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | Epoxy resin |
| Certificat_atex-en_us | PTB 01 ATEX 1105 |
| Certificat_iecex-en_us | IECEX PTB 06.0025 |
| Body colors | Black |
| Cable entry (s) | 1xm25 |
