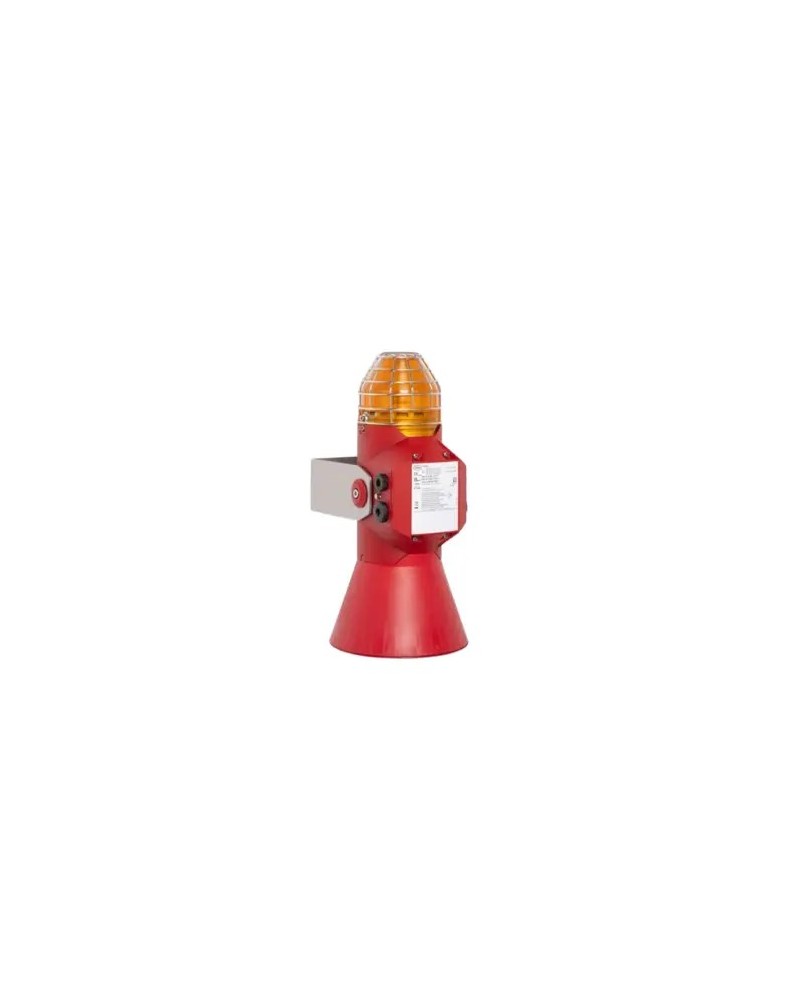

ATEX Series YL60 Handset Device
- IP66
- Last generation of sound and luminous signal transmitters
- Ex d / ex connection chambers
- Light solutions with 5 ... 21 J Xenon and High Performance LED with different lighting modes and 4 lighting channels
- Sound solutions with directional cornet or omnidirectional up to 120 dB (a) @ 1m, 4 sound channels and 64 preconfigured sounds
- 4 configurable power levels
- Stainless steel mounting brackets, fasteners and grid
- EN54 / DNV compliance
- Fastening caliper and protective grid included
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

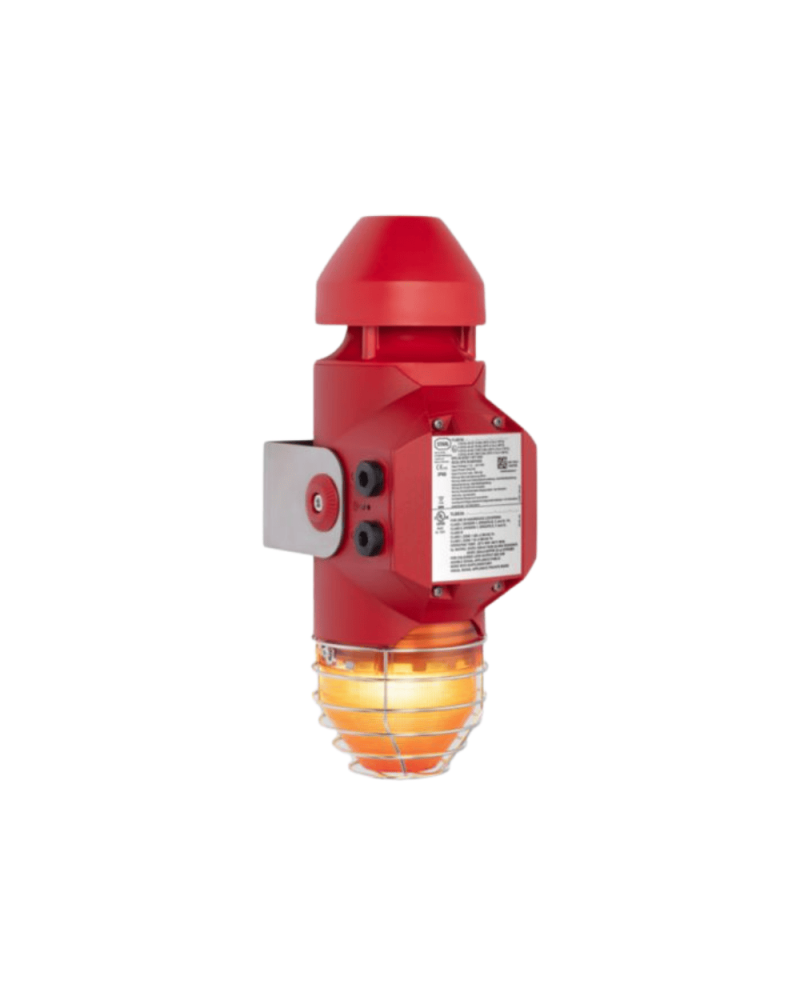

The YL60 / 3 product range provides sound and bright signals for indicating using an alarm, warning or notice, malfunction / start-up, or other security technical problem in ex. Preconfigured sound signals and light models (LEDs) offer a wide range of standardized signal models at the international level. The sound and bright signals can be exploited independently or in a combination, with 4 channels to the choice respectively for flexible use. Signaling devices meet the specifications of EN54 and DNV standards for the most demanding environments.
| Ambiant temperature | -40 ° to + 70 ° |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | EPS 22 ATEX 1 224X |
| Certificat_iecex-en_us | IECEX EPS 22.0046X |
| Body colors | Red |
| Number of sounds | 64 |
| Light source | Xenon |
| Ranting power | 120db |
| LED indicator | 1¨ |
| T6 | 1 |
| Aluminum with epoxy powder coating (stainless steel option available on request) | 1 |
