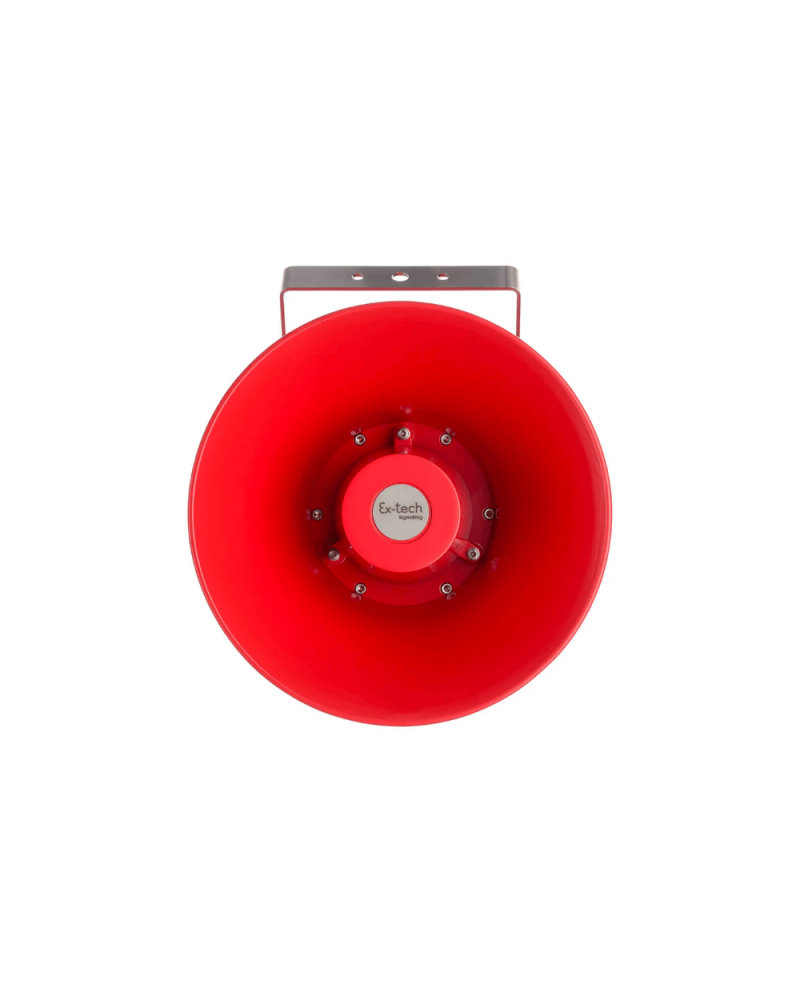

ATEX SD150 Siren in GRP
- Certified ATEX & IEC EX - ZONE 1/21 II 2G EEXD IIC T4 ~ T6
- Stainless steel variant also available IP 66/67
- Up to 115dB 12/48V DC or 100/240V AC 59 Sounds proposed
- Customizable sounds
- Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
- Stainless steel variant also available IP 66/67
- Up to 115dB 12/48V DC or 100/240V AC 59 Sounds proposed
- Customizable sounds
- Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The SD150 Anti-Screening Alarm is Certified ATEX / IECEX for use in potentially explosive atmospheres and issues powerful warning sounds to report alarms in difficult hazardous areas. It quickly alerts potential hazard staff or reports the need for immediate emergency response. It is made in PRV.
References Manufacturer: SD150DCNNARDN, SD150DCNNAYWN, SD150DCNABUN, SD150DCNNABLN, SD150ACNARDN, SD150ACNNAYWN, SD150ACNNABUN, SD150ACNNABLN
| Ambiant temperature | -40°C to +55°C |
|---|---|
| Temperature class | T6 |
| Warranty | 3¨ |
| Feed | 12-48V DC |
| Protection étanchéité (IP) | IP66.IP67 |
| Application/Usage | Zone ATEX |
| Zone ATEX | Zone 1/2 |
| Classe de gaz | IIC |
| Mode de protection ATEX | Ex d (antidéflagrant) |
| Certificats | ATEX.IECEx |
| Fréquence (Hz) | 50/60hz |
| Matière | Acier inoxydable 316L |
| Certificat_ATEX-fr_FR | NEMKO 13ATEX1562X |
| Certificat_IECEx-fr_FR | IECEX NEM 13.0032X |
| Couleurs corps | Rouge (RAL3001) |
| Puissance sonnore | 115dB |
| Puissance électrique | 20W |
