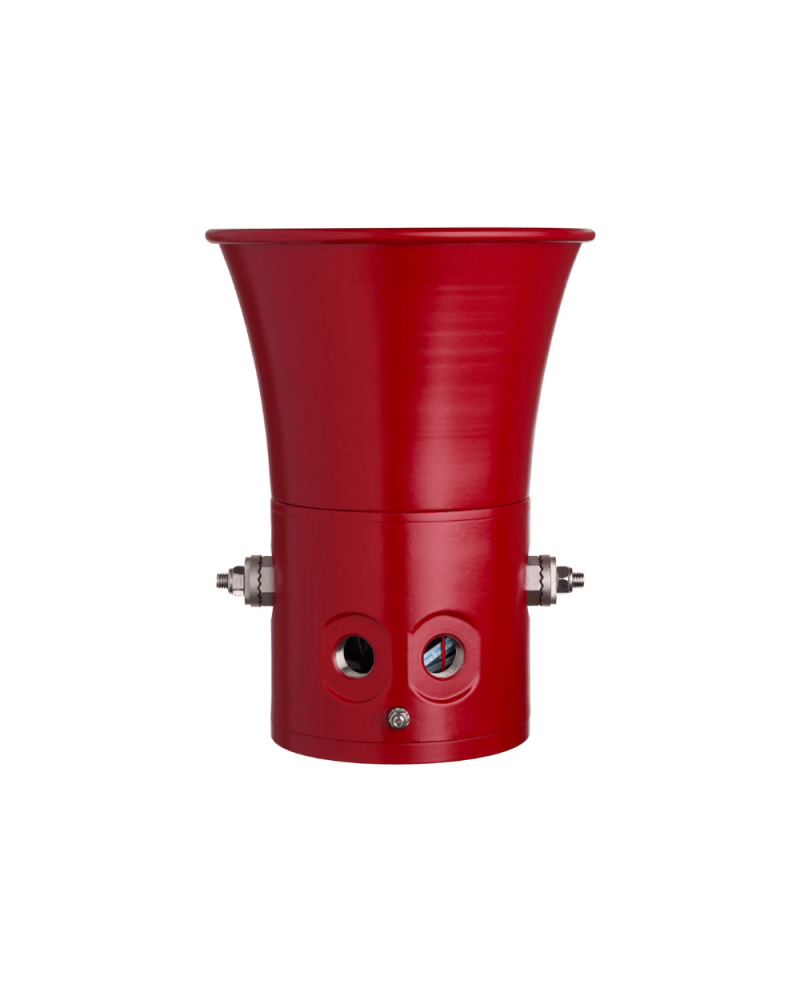

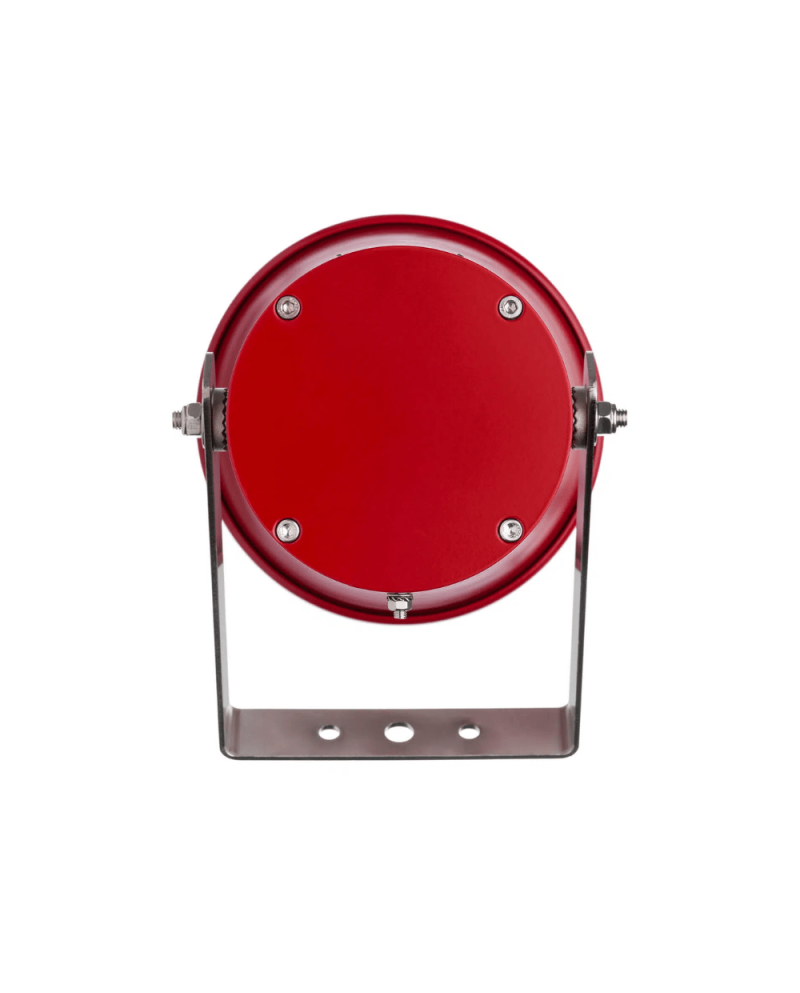

ATEX SD125 Siren in stainless steel

- Certified ATEX & IEC EX - Zone 1/21 & 2/22 II 2G EEXD IIC T4 ~ T6
- GRP variant also available
- IP 66/67 up to 115db
- 12 / 48V DC or 100/240V AC
- 59 Sounds proposed
- Customizable Sounds Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The SD125 Anti-Screening Sound Alarm is Certified ATEX / IECEX for use in potentially explosive atmospheres and transmits powerful warning sounds to report alarms in difficult hazardous areas. It quickly alerts potential hazard staff or reports the need for immediate emergency response. It is made of 316L stainless steel.
References Manufacturer: SD125DCNNARDN, SD125DCNNAYWN, SD125DCNABUN, SD125DCNNABLN, SD125ACNNARDN, SD125ACNNAYWN, SD125ACNNABUN, SD125ACNNABLN
Ambiant temperature -40°C to +55°C
Temperature class T6
Warranty
Feed 12-48V DC
Waterproofing protection (IP) Ip66.ip67
Application / usage ATEX zone
ATEX zone Zone 1/2
Gas class IIC
ATEX protection mode Ex d (explosion)
Certificates Atex.iecex
Frequency (Hz) 50 / 60hz
Material 316L Stainless Steel
Certificat_atex-en_us NEMKO 13ATEX1562X
Certificat_iecex-en_us IECEX NEM 13.0032X
Body colors Red (RAL3001)
Ranting power 115db
Power 20w
Reference EXT0004
