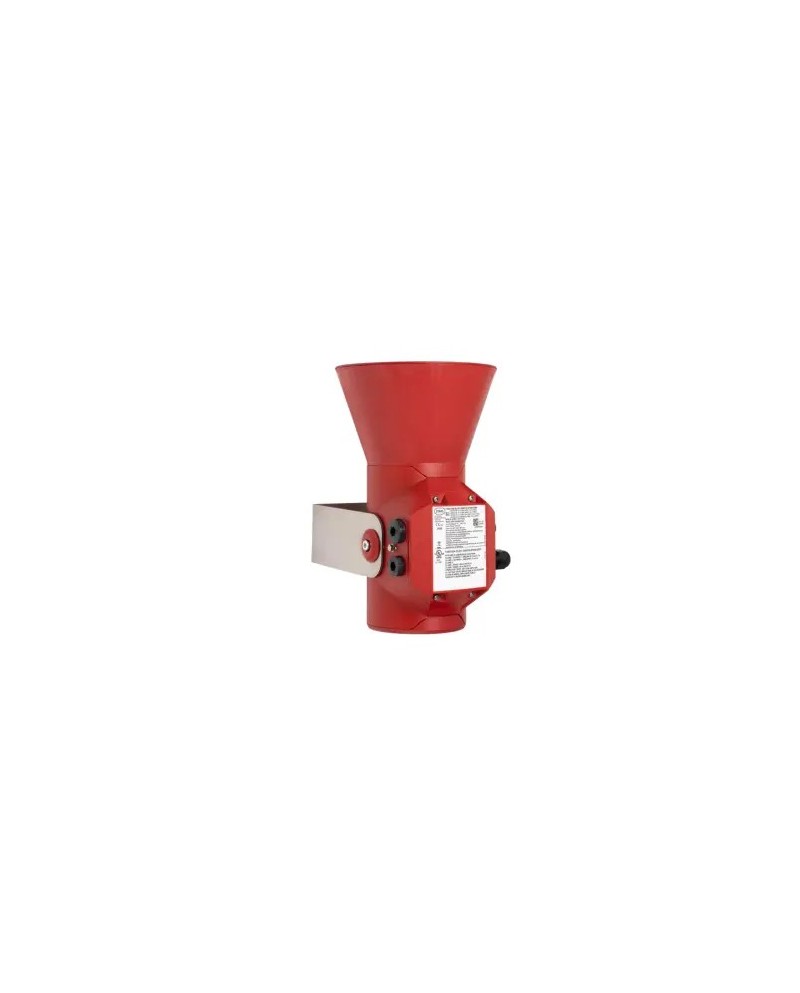

ADEX YA60 Sound Alarm
€1,220.08
Tax excluded
- IP66
- ambient temperature: -40 ° C to + 40 ° C
- Sound power: 120db
- Last generation of sound and luminous signal transmitters
- Ex d / ex connection chambers
- Sound solutions with directional cornet or omnidirectional up to 120 dB (a) @ 1m, 4 sound channels and 64 preconfigured sounds
- 4 configurable power levels
- Stainless steel brackets and fasteners
- EN54 / DNV compliance
- Fastening caliper included
Last items in stock
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Y60 / 3 product range provides sound signals for indicating by means of an alarm, warning or notice, malfunction / start-up or other technical safety problem in ex. Sound signals. Preconfigured offer a wide range of international standard signals, with 4 channels to the option of flexible use, respectively.
References Manufacturer: 319422,312375,319423
| Ambiant temperature | -40 ° C to + 40 ℃ |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 12V DC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Material | Aluminum with epoxy powder coating (stainless steel option available on request) |
| Certificat_atex-en_us | EPS 22 ATEX 1 224X |
| Certificat_iecex-en_us | IECEX EPS 22.0046X |
| Body colors | Red |
| Number of sounds | 64 |
| Ranting power | 120db |
| LED indicator | 1¨ |
