ATEX Foot Switch Ex GFI – Zones 1, 2, 21, 22 | A2S
search
  • ATEX Foot Switch Ex GFI – Zones 1, 2, 21, 22 | A2S

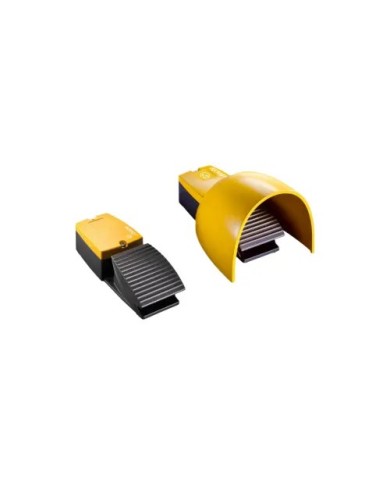

Ex pedal switches are used on all systems and machines where manual actuation is not possible or useful. All ex pedal switches in the EX GFS series are protected by a protective cover against any accidental actuation due to the fall of objects.

References Manufacturer: 240446
Brand
steute Schaltgeräte
Reference
STL0234
ATEX zone
Zone 1/2
Ambiant temperature
-40 ° to + 70 °
Warranty
2¨
Waterproofing protection (IP)
Ip66.ip67
Application / usage
ATEX zone
Gas class
IIC
ATEX protection mode
Ex d (explosion)
Certificates
Atex.iecex
Material
Aluminum Marine Quality
Réf. : STL0234

Explosion-Proof ATEX Foot Switch – Ex GFI Type

Demande de devis
  • Certification ATEX / IECEx
  • Réponse sous 24–48h

- Aluminum case, powder coating
- a pedal
- Available with or without protection hood
- Ergonomic pedal
- Large opening width of the hood
- With connection chamber
- Product Description: Pedal Switch
- Minimum ambient temperature: -40 ° C
- Ambient maximum temperature: +70 ° C
- Switching function: Slow action contact
- Designation 1: Pedal switch
- FILTERING ZONE: ZONE 1 | 2G | Go / Zone 2 | 3G | GC / Zone 21 | 2D | Db / zone 22 | 3D | Cc
- Actuator: pedal
- Contacts: 1 NF + 1 No
