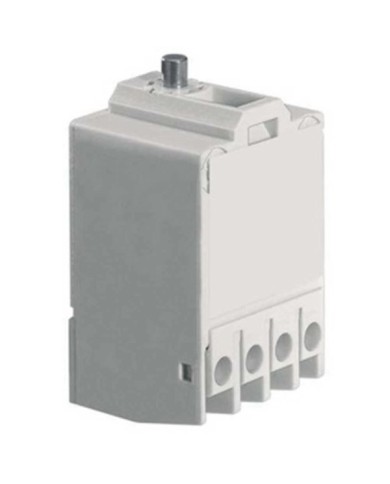

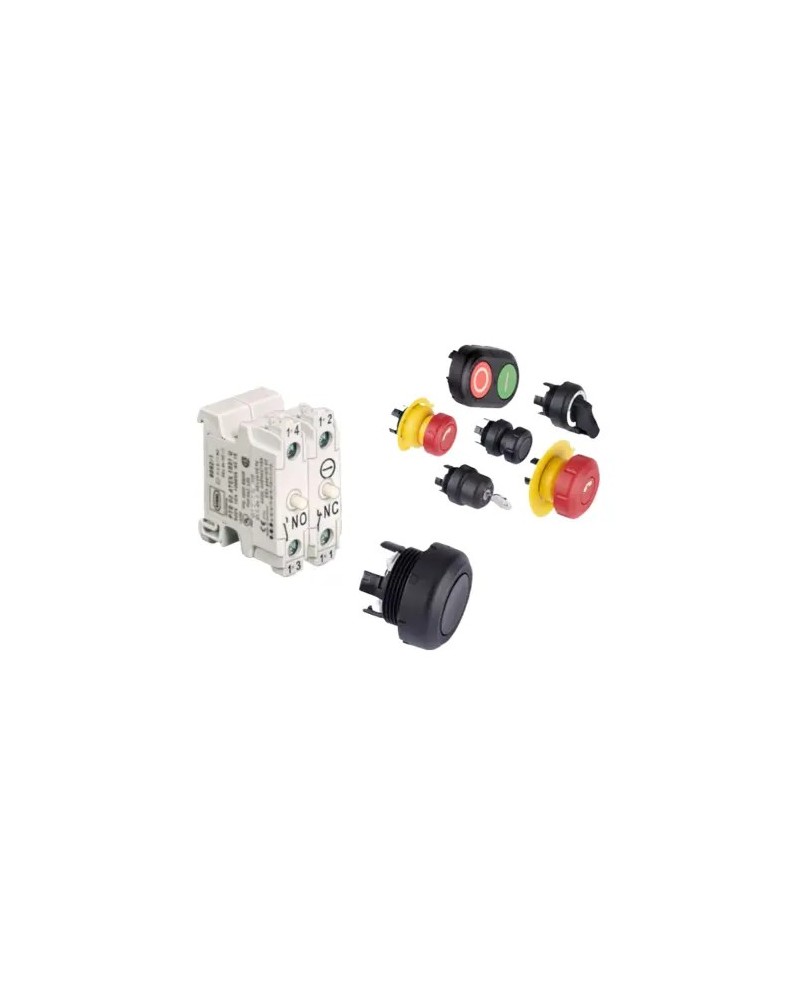

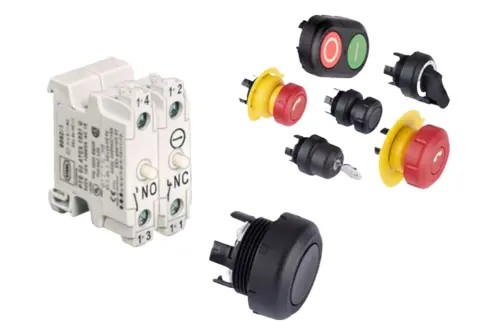

ATEX 8080 Series Contact Element
- IP20
- Maximum ambient temperature: +70 ° C
- Minimum ambient temperature: -60 ° C
- FILTERING ZONE: M2 | Mo / Zone 1 | 2G | GO / ZONE 2 | 3G | Goc
- Certificates: ATEX (PTB), Brazil (ULB), Canada (UL), Canada / United States (UL), China (CQST), Korea (KTL), IECEX (PTB), SIL (Exida)
- Contact material: silver-nickel
- Connection type: Screw terminal
- Maximum ambient temperature: +70 ° C
- Minimum ambient temperature: -60 ° C
- FILTERING ZONE: M2 | Mo / Zone 1 | 2G | GO / ZONE 2 | 3G | Goc
- Certificates: ATEX (PTB), Brazil (ULB), Canada (UL), Canada / United States (UL), China (CQST), Korea (KTL), IECEX (PTB), SIL (Exida)
- Contact material: silver-nickel
- Connection type: Screw terminal
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 8082 series cutoff terminals make it possible to manually isolate circuits for maintenance and control purposes. The cutoff terminals are used in Ex e housings and can also be activated in zones Ex. The point of the supply tightening is covered when the contact is open. The actuator can be locked in the zero position using a padlock according to IEC / EN 60947-5-1. Thanks to the special DIN rails available as accessories, the devices can be aligned in blocks.
References Manufacturer: 132636,132640,132644,132645
| Ambiant temperature | -60°C to +70°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | max. 500 V AC. 250V DC |
| Protection étanchéité (IP) | IP20 |
| Application/Usage | Zone ATEX |
| Zone ATEX | Zone 1/2 |
| Classe de gaz | IIC |
| Mode de protection ATEX | Ex d (antidéflagrant) |
| Certificats | ATEX.IECEx |
| Matière | Polyamide |
| Certificat_IECEx-fr_FR | IECEx PTB 06.0011U |
| Couleurs corps | Blanc |
