ATEX 8080 Series Contact Element

- IP20
- Ambient temperature: -60 ° C to + 70 ° C
- Housing material: polyamide
- Zone: 1,2
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

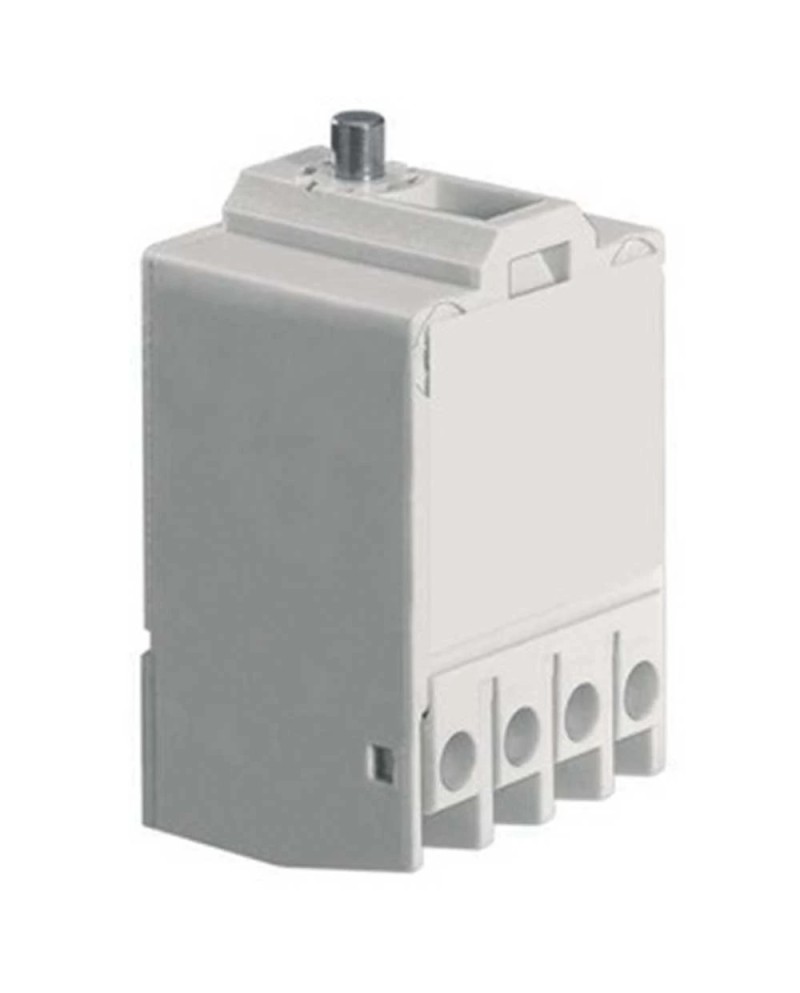

The 8080 / 1-1 contact element of the 8080 series is an electromechanical component developed by R. Stahl, recognized for its robustness, reliability, and its compliance with international safety standards in ATEX zones. It is a slow-action switching element for integrated in control and signaling devices in industrial environments, particularly in facilities classified in zones 1 and 2, where the risk of explosion is present.
References Manufacturer: 132529,132532,132533,132534,279482,132527
Ambiant temperature -60°C to +70°C
Temperature class T6
Warranty
Feed max. 500 V AC. 250V DC
Waterproofing protection (IP) Ip20
Application / usage ATEX zone
ATEX zone Zone 1/2
Gas class IIC
ATEX protection mode Ex d (explosion)
Certificates Atex.iecex
Material Polyamide
Certificat_atex-en_us PTB 00 ATEX 1112 U
Certificat_iecex-en_us IECEX PTB 05.0025U
Body colors White
Reference STL0007
