MINICON SERIES 8595
- IP66
- Simple handling with Hot Swap technology
- Numerous application possibilities thanks to the modular construction
- the most extreme conditions of use in explosive atmosphere
- Reliable connection of data and power supply or power supplies
- Simple connection and disconnection thanks to a hand handling
- Simple handling with Hot Swap technology
- Numerous application possibilities thanks to the modular construction
- the most extreme conditions of use in explosive atmosphere
- Reliable connection of data and power supply or power supplies
- Simple connection and disconnection thanks to a hand handling
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

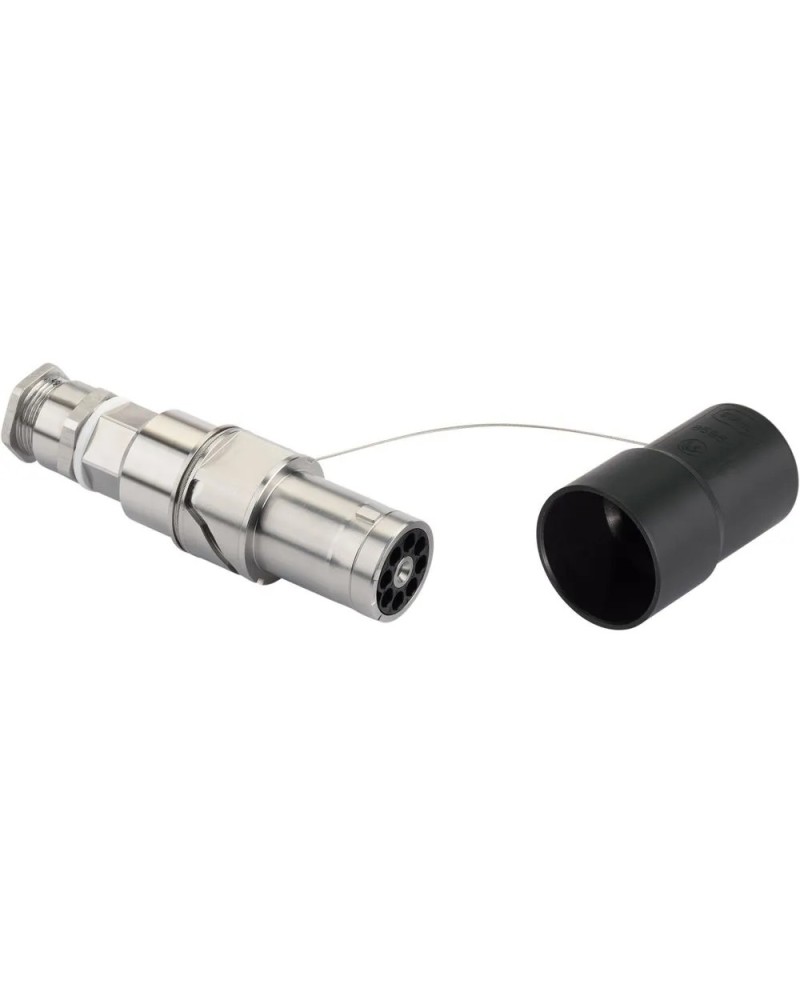

The 8595/1 series minicon cards and up to 8 poles, from R. Stahl are your 100% security link! The plugs available in a plastic and high-end stainless steel convince by their reliability in varied applications. The hot swap cutoff capacitance can unplug and reconnect with reliability and safety of intrinsic voltage power supplies and safety signals up to 500 V / 16 A - without fire permit. The minicon designed for 2.5 mm² 2.5 mm² driver sections are available in the construction forms connector plug and flange power plug, for direct conductor connection or device installation. The new plugs for the explosive atmospheres of zones 1 and 21 are particularly convincing thanks to a modular construction and components logically arranged for clear and fast mounting.
References Manufacturer: 298987
| Ambiant temperature | -40°C à +75°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | max. 500 V AC. 250V DC |
| Protection étanchéité (IP) | IP66 |
| Application/Usage | Zone ATEX |
| Zone ATEX | Zone 1/2 |
| Classe de gaz | IIC |
| Mode de protection ATEX | Ex d (antidéflagrant) |
| Certificats | ATEX.IECEx |
| Fréquence (Hz) | 50/60hz |
| Matière | Laiton nickelé |
| Certificat_ATEX-fr_FR | EPS 20 ATEX 1075 X |
| Certificat_IECEx-fr_FR | IECEx EPS 20.0035X |
| Taille de filetage | M25 |
