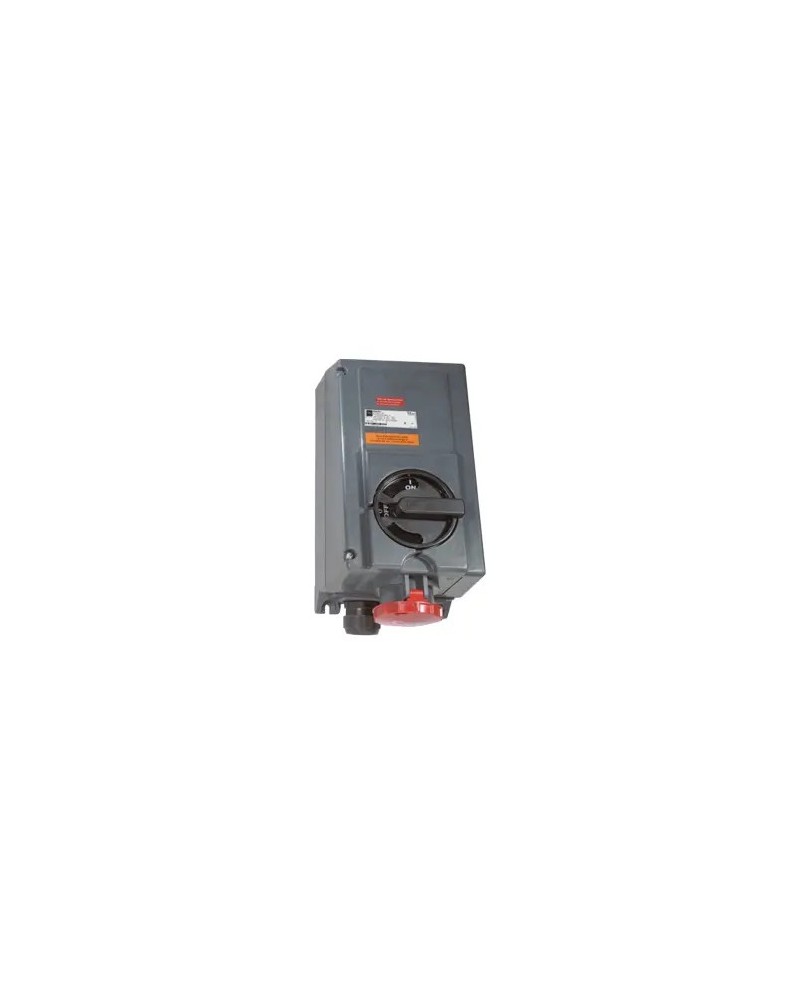

Wall sockets 125 A series 8581/31
- IP66
- Ambient temperature: -45 ° C ... 60 ° C
- Low voltage
- Zones: 1, 2, 21, 22
- Ambient temperature: -45 ° C ... 60 ° C
- Low voltage
- Zones: 1, 2, 21, 22
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
R. Stahl's 8581/31 Series for the 1/21 zone in version 4 and 5 poles offer full power power AC-3 up to 125 A. The high degree of protection IP66 guarantees maximum protection against penetration of dust and water in all application positions. Self-cleaning lamellating contacts ensure optimum electrical contact and plugs can be easily connected and disconnected in the zero position. The switch-disconnector contributes to safety by a mechanical locking device thanks to its lockable joystick in position 0 and I.
References Manufacturer: 277859,277860,277857,277858
| Ambiant temperature | -45 ° C to + 60 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 690v |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Reinforced polyester (GRP) |
| Certificat_atex-en_us | PTB 01 ATEX 1161 |
| Certificat_iecex-en_us | IECEX PTB 06.0034 |
| Threading size | M63 |
| Body colors | Black |
| M25 | 1 |
